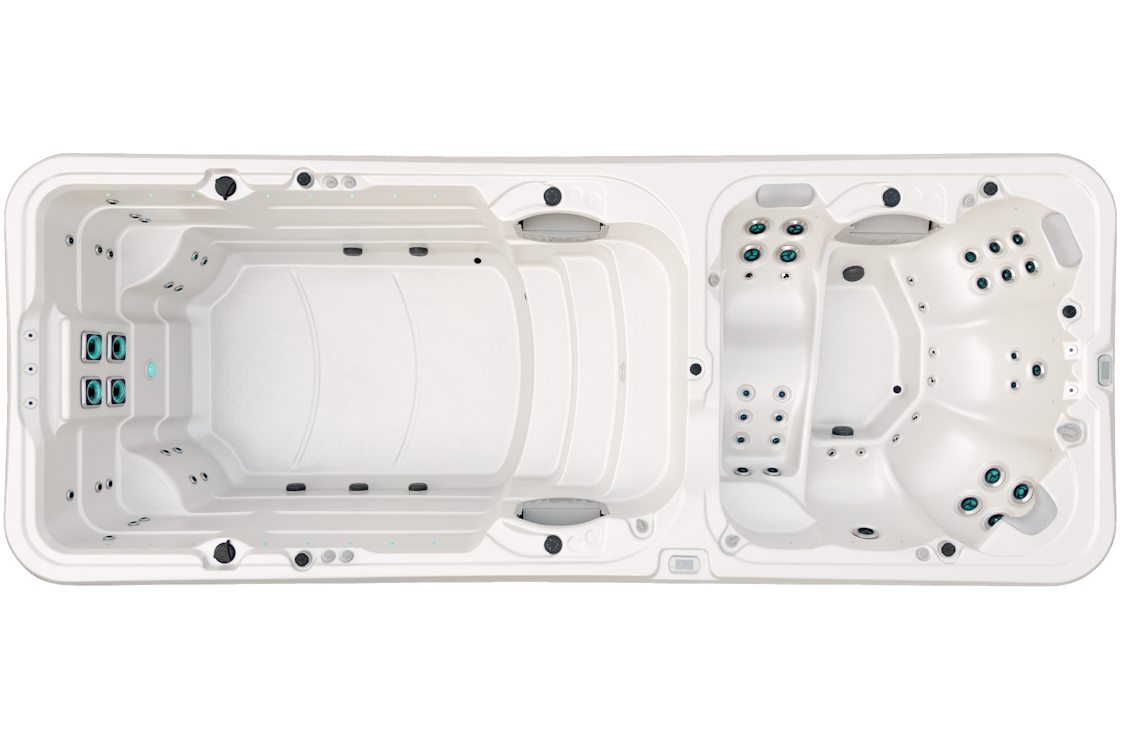

Hydrozone™ Swim Spa

Image may show optional extras.

From: NZD 40,490

Save up to: NZD 6,500

Seating: From 5 adults

Dimensions: From 5.90 x 2.30 x 1.30/1.50m

Jets: Up to 68

Why choose a Hydrozone™ Swim Spa?

There is no doubt that the Vortex Hydrozone™ gives you the best of both worlds, combining two completely separate zones to create the multifunctional Hydrozone™ swim spa. At one end you can luxuriate in Vortex’s hydrotherapy focused spa pool, and at the other enjoy exercise and family fun in the spacious swim spa.

The water in the two zones is kept completely separate by an internal wall. This feature allows you to set different jet pressures, water temperatures and other in-spa functions for the spa area and the plunge pool - even when you are using both at the same time.

The combination of up to 68 jets, hydrotherapy lounger, the renowned Vortex™ neck therapy collar, easy step-down access, ensures you get the complete Vortex™ experience from the moment you step into the Hydrozone™ to the moment you step out.

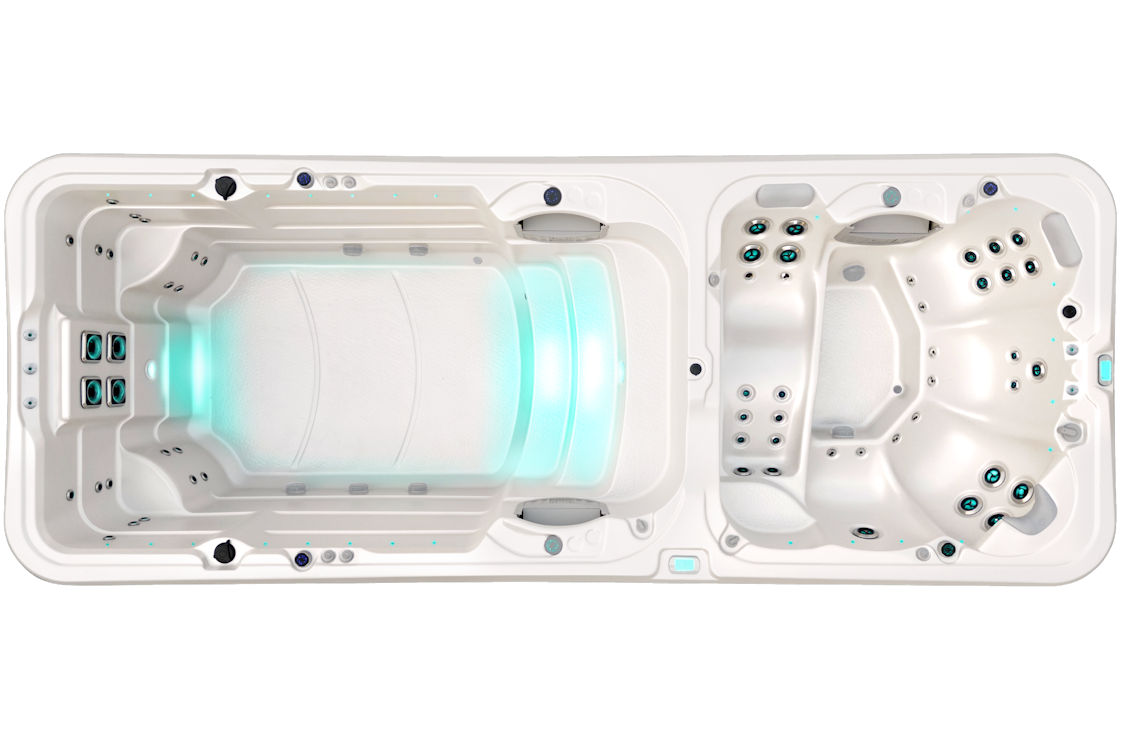

Hydrozone™ Swim Spa

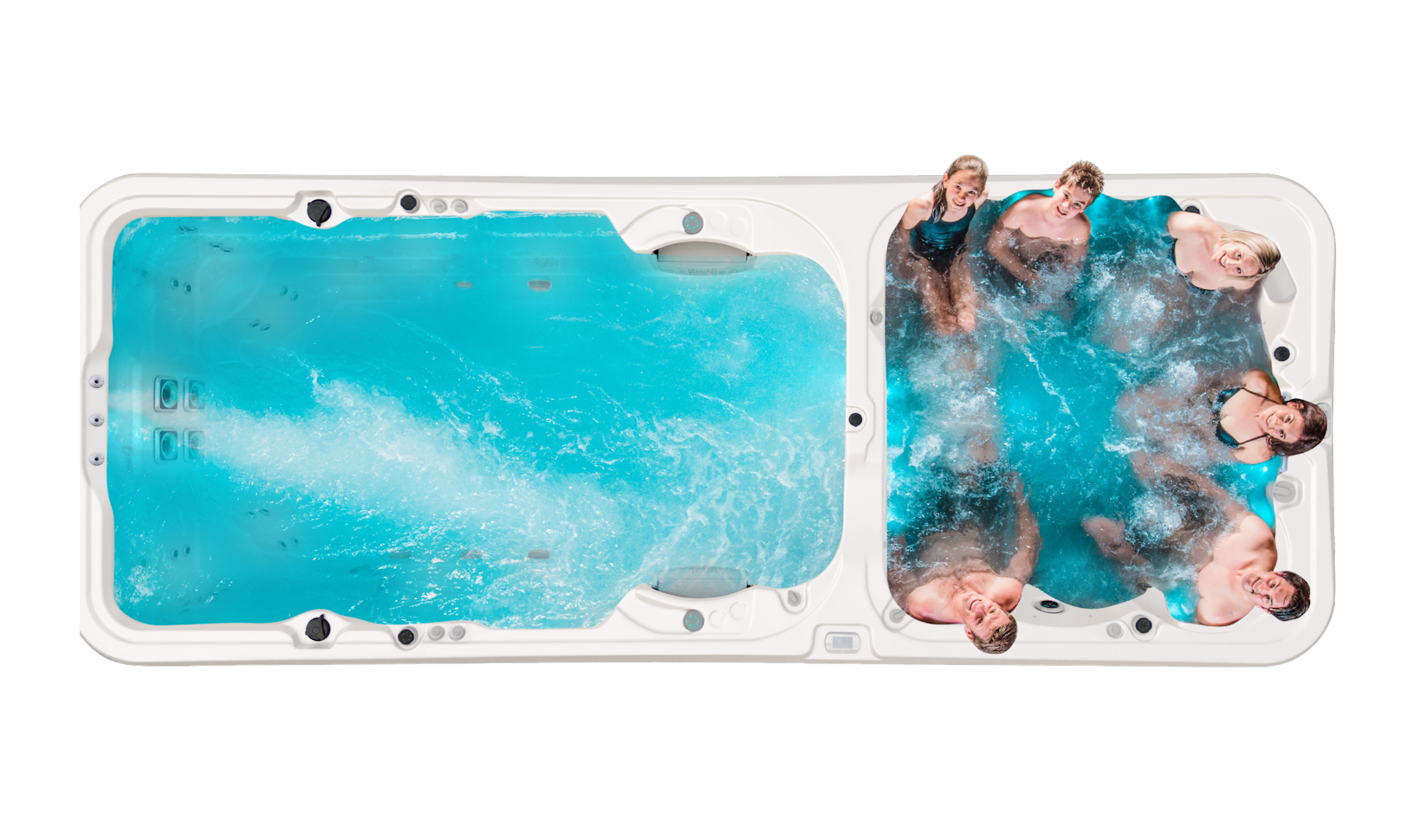

Hydrozone Carousel image 4

Image may show optional extras.

Hydrozone™ Swim Spa Features

Image may show optional extras.

Hydrotherapy Seating For Five

"The dual zoned Hydrozone™ has five hydrotherapy seats in the spa end and the two step seats in the swim end. "

Image may show optional extras.

Ergonomic Lounger with Foot Massage

The Hydrozone™ Swim Spa's hydrotherapy lounger combines upper and lower back massage with fantastic foot massage to bring you a supreme hydrotherapy experience.

Image may show optional extras.

Neck and Shoulder Therapy Seat

The famous Vortex™ neck and shoulder therapy seat has downward facing 50mm jets specifically designed to massage the back of the neck and the top of the shoulders.

Image may show optional extras.

Two Back Massage Seats

A back hydromassage seat with a unique array of jets specifically targeting parts of the lower and upper back.

Image may show optional extras.

One Child / Cool-Down Seat

Designed to seat you in a higher position to allow you to cool down, or as shallower seat for a child.

Image may show optional extras.

Up To Four Powerful Vortex™ Swim Jets

From no swim jets in the Plunge™ to four high-volume swim jets and standing cool down corners in the Extreme™, you can choose the perfect model for your fitness needs.

Hydroflow™ Stainless Steel Jets (Avanté)

Hydroflow™ Stainless Steel jets use the famous Vortex™ jet design which provides a premium massage.

Hydroglow™ Backlit Jets and Topside Controls (Avanté)

Chromotherapy is the science of using colours to create an environment focused on health and harmony. Hydroglow™ backlit jets and topside control lighting provide an adjustable and variable Chromotherapy experience.

Purezone™ Automatic Water Care System

This system makes safe, clean and clear water easy and affordable. It includes two high-efficiency, pleated filters plus one Purezone™ Micron filter that removes particles down to five microns, a Purezone™ Ozone generator for advanced water clarification and the Purezone™ UV-C steriliser (Avanté) for removing water borne microbes. Please note: If a Purezone™ filter is included in your spa, it should not be used in conjunction with a heat pump as it may cause a water flow error. We recommend using only appropriate pleated filters with heat pumps.

Four Laminar Jets (Avanté)

Laminar jets create perfect streams of backlit water giving a gentle visual display. The jets operate independently of the hydrotherapy jets, so they can be turn your spa into an impressive light display in your backyard.

Tranquil Water Feature

Vortex™ Spas' soothing water features help to create the perfect relaxing environment.

Beverage Chiller

The designers at Vortex™ thought of everything and gave a nod to entertaining by including a built in bottle cooler.

Hydroglow Illuminated drink holders Avante

Hydroglow™ Illuminated Drink Holders (Avanté)

These backlit drink holders are functional and beautiful while creating a lighted, non-slip landing pad for your favourite beverages.

Hydroglow Perimeter and cabinet lighting (Avante)

Hydroglow™ Perimeter and Cabinet Lighting (Avanté)

The additional lighting to the water edge and functional outside lighting are included with the perimeter and cabinet lighting package. All lighting is customisable to suit your mood.

Automatic Aromatherapy Dispenser (Available on Avante models)

Aromatherapy is a holistic treatment that uses natural plant extracts to promote health and well-being and enhance both physical and emotional health. The adjustable Vortex™ Aromatherapy system automatically injects Aromatherapy scent into the spa water.

Spa Health Indicator Light

The Vortex™ Spa health indicator light is designed to communicate the spa’s condition to spa user without having to lift the cover. The indicator lights up blue to show it is at the correct temperature, red to indicate a water temperature fluctuation over 5°C, or a fault.

Premium SpaNet™ Controller

The SpaNet SV Series controller is designed to maximise energy savings and deliver the lowest possible daily operating cost for your spa using PowerSmart™ technology like Dynamic Thermal Tuning and SmartFiltration™.

SpaNet™ Variable Output Heater

The SpaNet™ SV Series has a variable output heater. Unlike most controllers, this means when the spa's jet pump is turned on, the heater turns DOWN rather than OFF. This has the benefit of maintaining the spa's temperature while you are using it, rather than cooling it down.

SpaNet™ Integrated Heat Pump Interface

If you want to save up to 75% on your spa heating cost, you can choose the optional SpaNet™ Hybrid Heat Pump. This optional integrated system is plug and play with the SV controller.

SV SmartLINK™ WiFi Module (Optional)

Control and monitor your spa remotely from anywhere in the world! With the optional SpaNet™ SmartLINK™ WiFi/bluetooth control unit, just download the SpaNet™ SpaNet™ SpaLINK™ phone app (Android or Apple) and you can control all your spa functions simply and remotely.

SV SmartStream™ Sounds System With WiFi (Optional)

SmartStream™ is an all-in-one, purpose-built, high-definition sound system with bluetooth connectivity so you can stream music or audio direct to your spa from your favourite apps. Auxiliary audio input sockets are also provided for connection to other audio-visual sources. In addition, the SmartStream™ also features a built-in WiFi module for remote access control of your spa via the SpaNET™ SpaLink™ smart device app available for both Apple iOS and Android devices.

ThermoLock™ High-Density Locking Cover

Most of the heat loss in a spa occurs through the spa's cover. As such, it is important that the spa's cover is manufactured from a high-density foam that has better heat retention properties. The Vortex™ uses a high-density foam insert which is also heat shrink sealed to prevent water ingress, prolonging the cover's life.

ThermoLock Dual layer Insulation (Avante)

ThermoLock™ Dual layer Insulation (Avanté)

This dual layer insulation system ensures that not only the water in the spa is insulated, but also the water in the pipework. This option adds a higher level of heat retention than Vortex™ Spas' standard Thermolock™ Perimeter insulation.

ThermoLock™ Toughened ABS Base

This insulated base works in tandem with the Thermolock™ Perimeter insulation to ensure the cold is kept out and heating costs are reduced.

Steel Permaframe™ Construction (Avanté)

Galvanised tubular steel Permaframe™ construction is a timber-free framing system that is impervious to rot, mildew or vermin damage. It will last the life of your spa.

Colours to Suit Your Home

Configure your item. Check out the colour options or use our augmented reality platform to view this product virtually at your home.

*Disclaimer: The 3D and AR models may show additional extras. Actual colours may differ from renders.

Compare Hydrozone™ models

The Hydrozone™ comes in four variations. Each model has exactly the same seating layout and features. However, the swim resistance zone has additional jets in the Pro, Pro+ and Extreme.

Note: The electrical requirements for each model are: Plunge 15amp, Pro and Pro+ 32amp, and Extreme 45amp.

Hydrozone Plunge™
The Hydrozone Plunge™ is perfect for family fun and ideally suited for standing fitness and aquasize for those who want to keep fit or recover. If you want to swim, the Pro, Pro+ or Extreme could be better suited for you, depending on your swimming ability.
- No swim jets
- 2 pumps
Hydrozone Pro™
The Hydrozone Pro™ is a step up from the Plunge with the added resistance of two powerful 150mm swim jets creating a current strong enough to swim, walk or jog against. This model is ideal for up to intermediate level swimming. More advanced swimmers may want to go for the Pro+ or Extreme models.
- 2 swim jets
- 3 pumps
Hydrozone Pro+™
Powered by three pumps, the Pro+ adds another level of resistance to your workout with three 150mm swim jets to step up your training. This model is perfect for every swimmer from beginner up to advanced as well as water joggers and those using aquatic fitness.
- 3 swim jets
- 4 pumps
Hydrozone Extreme™
The most powerful of the Hydrozone™ models, the Extreme adds some serious resistance to your swim training regime with four swim jets for advanced fitness training. With it’s variable Vortex™ swim resistance system, the Extreme is perfect for beginners all the way up to athletes. If you are a swimmer that’s serious about your training, the Extreme is for you.
- 4 swim jets
- 5 pumps

Compare Hydrozone™ depth

The Hydrozone™ swim spa is now available with extra depth.

You can select the standard water depth of 1.3 metres or the 1.5 metre extra deep Hydrozone XD™ Swim Spa. Taller people or those who would like a deeper pool for swim or play, should seriously consider this option.

Hydrozone™ 1.3m
The 1300mm deep model has the same seating configuration as the 1500mm deep XD model and boasts these advantages:
- less water so it costs less to heat and maintain
- lower price
- easier access
Hydrozone™ XD 1.5m
The XD model has the same seating configuration as the 1300mm deep model but the 1500mm deep XD upgrade provides an added 200mm of of depth and is ideal for those who:
- are above average in height and are an average to athletic swimmer
- are above average height and are focused on vertical aquatic fitness
- have children that love doing bombs

Why Choose an Avanté Upgrade

Upgrade to the Hydrozone™ Swim Spa Avanté and take your spa experience to the next level with a range of features designed for added comfort and superior luxury. The Avanté model brings together a collection of Vortex™ Spas’ most popular upgrades which, when purchased together, offers significant savings.



	Hydrozone™ Swim Spa Standard	Hydrozone™ Swim Spa Avanté™
If not 100% satisfied with your purchase, pay the return and we'll give your money back. Terms and conditions apply.
We've put our money where our mouth is. We stand behind every product we sell with our amazing 10 year shell warranty.
Most of the heat loss in a spa occurs through the spa's cover. As such, it is important that the spa's cover is manufactured from a high-density foam that has better heat retention properties. The Vortex™ uses a high-density foam insert which is also heat shrink sealed to prevent water ingress, prolonging the cover's life.
The Water Clarifier uses ozone technology to oxidize and remove micro organics and metals that are smaller than 5 microns resulting in the clearest water available.
Our powerful LED flood light does the heavy lifting to illuminate your spa at night. This leaves the other lights to add ambience to all the right places.
The SpaNet™ SV Series controller is designed to maximise energy savings and deliver the lowest possible daily operating cost for your spa using PowerSmart™ technology like Dynamic Thermal Tuning and SmartFiltration™.
This is the same insultaion upgrade used in Scandanavia and Canada and will reduce heating costs.			Value NZD 1,999
The UV-C technology found in the Purezone™ system is not new. In fact you will find it purifying drinking water and public swimming pools all around the world. However, Vortex Spas™ have pioneered it's use in spa pools. UV sterilization kills 99.9% of water borne viruses and bacteria, including the hard to reach Giardia and Cryptosporidium viruses.			Value NZD 999
Hydroflow™ Stainless Steel jets use the famous Vortex™ jet design which provides a premium massage.			Value NZD 699
Chromotherapy is the science of using colours to create an environment focused on health and harmony. Hydroglow™ backlit jets and topside control lighting provide an adjustable and variable Chromotherapy experience.			Value NZD 499
This dual layer insulation system ensures that not only the water in the spa is insulated, but also the water in the pipework. This option adds a higher level of heat retention than Vortex™ Spas' standard Thermolock™ Perimeter insulation.			Value NZD 1,999
The additional lighting to the water edge and functional outside lighting are included with the perimeter and cabinet lighting package. All lighting is customisable to suit your mood.			Value NZD 999
These backlit drink holders are functional and beautiful while creating a lighted, non-slip landing pad for your favourite beverages.			Value NZD 199
Laminar jets create perfect streams of backlit water giving a gentle visual display. The jets operate independently of the hydrotherapy jets, so they can be turn your spa into an impressive light display in your backyard.			Value NZD 599
Total Value	NZD 43,490	NZD 51,482	NZD 7,992
Avanté™ Package Price		NZD 50,490
Avanté™ Package Savings		NZD 992
Special Sale Price		NZD 43,990
	Select Standard	Selected Avanté™

Build your Hydrozone™ Swim Spa

Specifications

Detailed specifications for the Hydrozone™ swim spa

Download Specs

	Plunge	Pro	Pro Plus	Extreme	Plunge XD	Pro XD	Pro Plus XD	Extreme XD
Dry weight	1380kg	1431kg	1480kg	1530kg	1450kg	1500kg	1531kg	1580kg
Swim/Spa End Water Capacity	5425/1259	5425/1259	5425/1259	5425/1259	6000/1300	6000/1300	6000/1300	6000/1300
Filled weight (inc cover)	8123kg	8173.5kg	8222.5kg	8272.5kg	8808.5kg	8858.5kg	8889.5kg	8938.5kg
Lift weight	1900kg	1900kg	1900kg	1900kg	2000kg	2000kg	2000kg	2000kg
Intuitive spa controller	SV2+SV3	SV2+SV3	SV2+SV3	SV2+SV4	SV2+SV3	SV2+SV3	SV2+SV3	SV2+SV4
Programmable circulation pump	2	2	2	2	2	2	2	2
Jet pumps	1+1	2+1	3+1	4+1	1+1	2+1	3+1	4+1
Variable speed airblower	1	1	1	1	1	1	1	1
Variable output heater	3kW+3kW	3kW+5.25kW	3kW+5.25kW	3kW+5.25kW	3kW+3kW	3kW+5.25kW	3kW+5.25kW	3kW+5.25kW
Electrical requirements	15+32 amps	15+32 amps	15+32 amps	15+40 amps	15+32 amps	15+32 amps	15+32 amps	15+40 amps

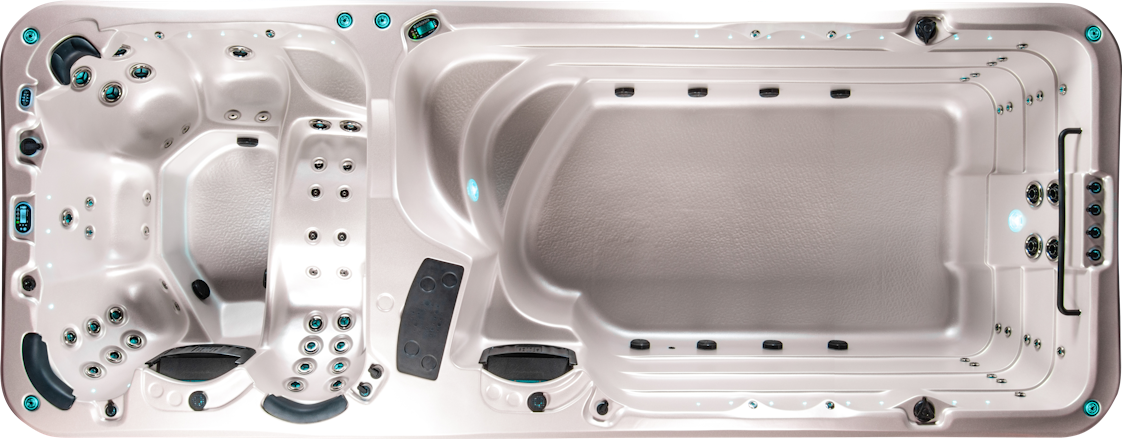

Jet Layout

The Hydrozone™ swim spa features a range of hydrotherapy jets for a relaxing massage and fitness training. Hydrozone™ Extreme™ model shown.

Hydrozone™
4 x 150mm Swim Jets
5 x 127mm Single Spinning Jets
2 x 127mm Directional Jets
6 x 75mm Directional Jets
9 x 75mm Single Spinning Jets
10 x 50mm Directional Jets
12 x 50mm Twin Spinning Jets
16 x 40mm Air Jets

Jet Types

150mm Swim Jets

The 150mm swim jets create a current strong enough to swim against. You can even personalise your work out by adjusting the pressure on each jet individually.

Jet Types

127mm Single Spinning Jets

This large single spinner gives a rotating massage effect similar to a masseuse using their thumb in a kneading fashion. They provide a very effective back massage.

Jet Types

127mm Directional Jets

The 127mm directional jets provide an intense, pressure point massage. These are particularly effective at treating knotted muscles in the back.

Jet Types

75mm Single Spinning Jets

The 75mm single spinning jets offer a similar effect as the larger 127mm variety but given their smaller size, the kneading effect is lighter and more focused.

Jet Types

75mm Directional Jets

This style of directional jets gives a targeted but less intense pressure point massage. It's very effective for a more prolonged treatment of tired muscles.

Jet Types

50mm Twin Spinning Jets

The 50mm twin spinner offers a pulsating massage effect ideally suited for neck and shoulder therapy or as part of a shiatsu style massages treatment when teamed with 50mm directional jets.

Jet Types

50mm Directional Jets

These jets are usually used in banks of 8 or more jets and are often coupled with 50mm twin spinners to give a shiatsu style pressure point massage therapy.

Jet Types

40mm Air Jets

As the name implies, the 40mm air jets emit an air stream as opposed to a water stream. These are almost always used under the legs and buttocks to provide a relaxing soft tissue massage treatment.

Warranties

The Vortex Spas™ range of spas is covered by comprehensive warranty agreements providing peace of mind when you purchase Vortex Spas™.

View Warranty

Lifetime Warranty

Vortex's Permaframe™ is guaranteed for life against a loss of structural integrity leading to the spa being inoperable.

10 Year Non Pro rata Structural Warranty

All Vortex Spas™ are offered with a 10 year 'non pro-rata' shell structure warranty. This means that if the spa's shell cracks resulting in water loss, for a period of 10 years, the spas shell shall be replaced.

5 Year Non Pro rata Acrylic surface warranty

All Vortex Spas™ are offered with a 5 year 'non pro-rata' acrylic surface warranty. This means that if the acrylic surface blisters resulting in water loss for a period of 5 years, the spa's shell shall be replaced.

5 Year Plumbing, Heater & Jet Warranty

The plumbing system of all Vortex Spas™ is warranted against leaking for 5 years. The heater and jets of all Vortex Spas™ are warranted against defects for a period of 5 years.

2 Year Pump & Equipment Warranty

The circulation pump, jet pump(s) and electronic control system of all Vortex Spas™ are warranted against defects for 2 years. *Please consult your local store for complete warranty details.

Similar Swim Spas

You may want to check out these similar spas to compare features and find the right spa for you and your family.


	Hydrozone™ Swim Spa	Aqualap™ Swim Spa	PowerPro^® 16
Seating	5	4	4
Dimensions	From 5.90 x 2.30 x 1.30/1.50m	From 5.90 x 2.30 x 1.30/1.50m	From 4.72 x 2.36 x 1.34m
Volume	1300 / 6000	8500/9720Ltr	7,638Ltr
Jets	Up to 68	Up to 81	32
Weight (Full)	Up to 1580Kg	Up to 11,353Kg	8,799Kg
Price	From NZD 40,490 Save up to NZD 6,500	From NZD 37,490	From NZD 70,490
		Find Out More	Find Out More

*Note: All prices are subject to change without notice. Read about our full finance details.
