Palladium™ Spa

Vortex Spas™
Image may show optional extras.
NZD 20,499


From 10 adults


From 3.52 x 2.28 x .90m


From Up to 98 jets

Why choose a Palladium™ Spa?

With seating for nine adults, step in entry, up to 93 jets, twin loungers, a neck and shoulder massage seat plus a multitude of water features and lighting options, you’ll be hard pressed to find a more impressive spa setup than the Vortex Palladium™.

At a massive 3.5m x 2.3m there’s space to entertain a crowd and the Palladium™ also makes a fabulous family spa with room for kids to swim and play. A bonus feature for anyone who’s a little unsteady on their feet is the step-down access. This safety feature makes getting in and out easy for everyone - and provides extra seats for littlies.

If you’re prepared to go big, then kick back and enjoy quality time in the Vortex Palladium™, you won’t regret it.

Image may show optional extras.

Palladium™ Spa Features

Hydroflow™ Stainless Steel Jets (Avanté)

Hydroflow™ Stainless Steel jets use the famous Vortex™ jet design which provides a premium massage.

Hydroglow™ Backlit Jets and Topside Controls (Avanté)

Chromotherapy is the science of using colours to create an environment focused on health and harmony. Hydroglow™ backlit jets and topside control lighting provide an adjustable and variable Chromotherapy experience.

Purezone™ Automatic Water Care System

This system makes safe, clean and clear water easy and affordable. It includes two high-efficiency, pleated filters plus one Purezone™ Micron filter that removes particles down to five microns, a Purezone™ Ozone generator for advanced water clarification and the Purezone™ UV-C steriliser (Avanté) for removing water borne microbes.

Colours to Suit Your Home

Configure your item. Check out the colour options or use our augmented reality platform to view this product virtually at your home.

View in home

Open the camera app on your phone or tablet and scan this code


Shell Colours

Cabinet Colours

*Disclaimer: The 3D and AR models may show additional extras. Actual colours may differ from renders.

Compare Palladium™ models

Consider upgrading to the premium hydromassage experience and added power of three pumps and extra jets with the Palladium™ Hydroplus™

  • Palladium™

    The Palladium™ features the same ergonomically designed shell as the Hydroplus™ model but with two jet pumps instead of three. One thing to consider in a spa with this many jets and two pumps, is that you won't get full pressure from all jets at one time. A diverter valve allows you to direct the pressure either into the loungers, or into the remaining seats or you can achieve lower pressure in all seats at one time. This model requires 32 amps

    • 2 pumps
  • Palladium™ Hydroplus™

    If you want the very best Hydromassage experience, then the Palladium™ Hydroplus™ model is for you. It boasts an added SmartFlow™ jet pump to power the additional, strategically placed Hydroflow™ jets. This model requires 32amps to fully utilise the Hydroplus™ capabilities.

    • 3 pumps
    • Orange jets are additional

Why Choose an Avanté Upgrade

Upgrade to the Palladium™ Spa Avanté and take your spa experience to the next level with a range of features designed for added comfort and superior luxury. The Avanté model brings together a collection of Vortex™ Spas’ most popular upgrades which, when purchased together, offers significant savings.

Palladium™ Spa Standard

Palladium™ Spa Avanté™

Value NZD 999
Value NZD 499
Value NZD 499
Value NZD 499
Value NZD 699
Value NZD 499
Value NZD 199
Value NZD 199

Total Value

NZD 20,499

NZD 26,192

NZD 4,092

Avanté™ Package Price

NZD 23,499

Avanté™ Package Savings

NZD 2,693

Build your Palladium™ Spa

NZD 20,499


The Avanté upgrade includes Hydroflow™ stainless steel jets, Hydroglow™ backlit drink holders, Hydroglow jet and topside control lighting, perimeter and cabinet lighting, Hydroglow™ backlit laminar jets, dual layer insulation, Purezone™ UV water purifier, and timber-free Permaframe™ construction.

2.28 m3.52 m


Palladium™ Hydroplus™

Dry Weight665kg752kg
Filled weight (inc cover)3345kg3432kg
Lift weight930kg930kg
Intuitive spa controllerSV3SV3
Programmable circulation pump 250W250W
Jet pumps3HP x 23HP x 3
Variable speed airblower1000W1000W
Variable output heater6kW max6kW max
Electrical requirements 32 amps max32 amps max

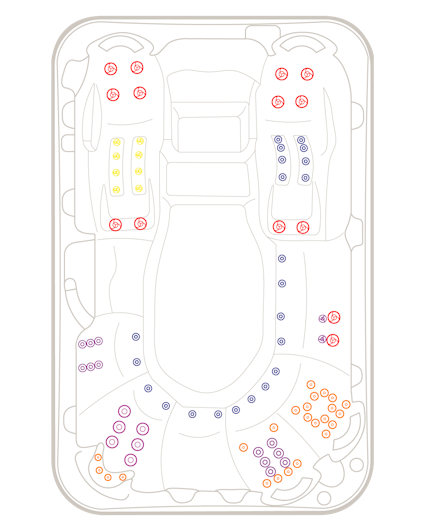

Jet Layout

The Vortex Palladium™ features 6 x 127mm Directional Jets, 14 x 127mm Single Spinning Jets, 12 x 75mm Directional Jets, 2 x 75mm Single Spinning Jets, 24 x 50mm Directional Jets, 8 x 50mm Twin Spinner Jets, 22 x 40mm Air Jets.



  • 6 x 127mm Directional Jets
  • 14 x 127mm Single Spinning Jets
  • 12 x 75mm Directional Jets
  • 2 x 75mm Single Spinning Jets
  • 24 x 50mm Directional Jets
  • 8 x 50mm Twin Spinning Jets
  • 22 x 40mm Air Jets

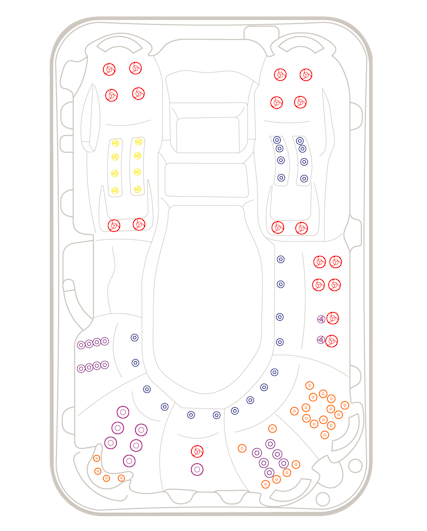

Palladium™ Hydroplus™

Palladium™ Hydroplus™

  • 7 x 127mm Directional Jets
  • 19 x 127mm Single Spinning Jets
  • 14 x 75mm Directional Jets
  • 4 x 75mm Single Spinning Jets
  • 24 x 50mm Directional Jets
  • 8 x 50mm Twin Spinning Jets
  • 22 x 40mm Air Jets

Similar Spa Pools

You may want to check out these similar spas to compare features and find the right spa for you and your family.

Palladium™ Spa

Titanium™ Spa

J-495™ Spa

DimensionsFrom 3.52 x 2.28 x .90mFrom 3.00 x 2.30 x .90mFrom 2.31 x 2.79 x .95-1.07m
JetsUp to 98Up to 5471
Weight (Full)3,345/3,432Kg2,594/2,634Kg2,862Kg
NZD 20,499
NZD 15,499
NZD 35,990
Find Out MoreFind Out More
