How to Install a Jacuzzi® ProLift™ Manual Cover Lift: A Step-by-Step Guide

Are you looking to install your Jacuzzi® ProLift™ Manual Cover Lift effortlessly? This detailed step-by-step guide will walk you through every step, from gathering parts to final adjustments, ensuring a smooth and hassle-free installation process.

jacuzzi prolift manual cover lift

Installing a Jacuzzi® ProLift™ Manual Cover Lift can be hassle-free with the right instructions. This guide breaks it down into simple steps, helping you quickly assemble and adjust everything.

This guide covers everything from identifying parts to proper adjustments, whether for a 2020+ model or a custom fit. Let’s begin!

Key Takeaways

  • Pre-drilling holes can prevent material splitting during mounting bracket installation.
  • Avoid tightening screws until all components are properly aligned and adjusted.
  • Proper screw placement ensures smooth operation without rubbing or damaging the spa cover.
  • Double-check that all components are securely fastened before using the lift.

What spa models are compatible with Jacuzzi® ProLift™ Manual Cover Lift?

The Jacuzzi® ProLift™ Manual Cover Lift is compatible with J-300™ Series, J-LXL™, and J-LX™ Jacuzzi® Spa models.

Watch: How to Install the 6473-236 Jacuzzi® ProLift™ Manual Spa Cover Lifter

What parts come with the Jacuzzi® ProLift™ Manual Cover Lift?

Before starting the installation, take a moment to ensure you have all the required parts. Refer to the instruction manual for a complete list, and visually identify each part to avoid delays during installation.

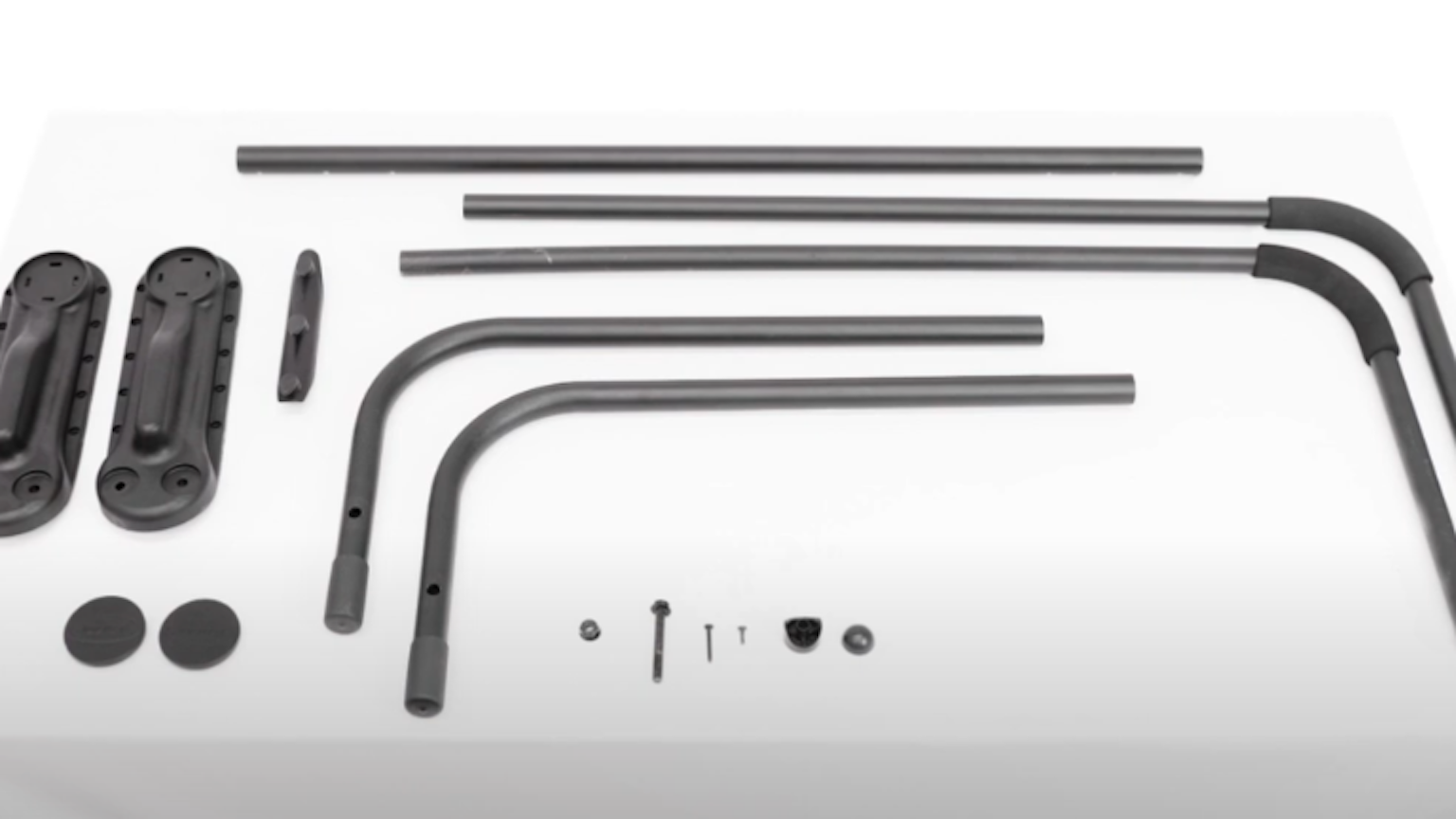

jacuzzi prolift manual cover lift parts

Below are the parts included:

  • 2 Mounting Brackets 2 Pivot Arms
  • 2 Support Arms
  • 1 Center Coupler
  • 1 Towel Clip
  • 2 Plastic Brand Caps
  • 2 3/8 X 3" Hex Cap Bolt
  • 2 3/8 Nylon Locknut
  • 4 3/8 Flat Washer
  • 4 Pole Adapted Bushing
  • 2 Large Hex Bolt Dome Cover Caps
  • 24 #10X 1" Mounting Screws
  • 12 #10 X 5/8" Self Tapping Screws

Jacuzzi® ProLift™ Manual Cover Lift | Step-by-Step Installation Guide

Installing a Jacuzzi® ProLift™ Manual Cover Lift can be straightforward if you follow the proper steps. This guide simplifies the steps to help you complete the installation easily.

Step 1: Attach the Pivot Arm to the Mounting Bracket

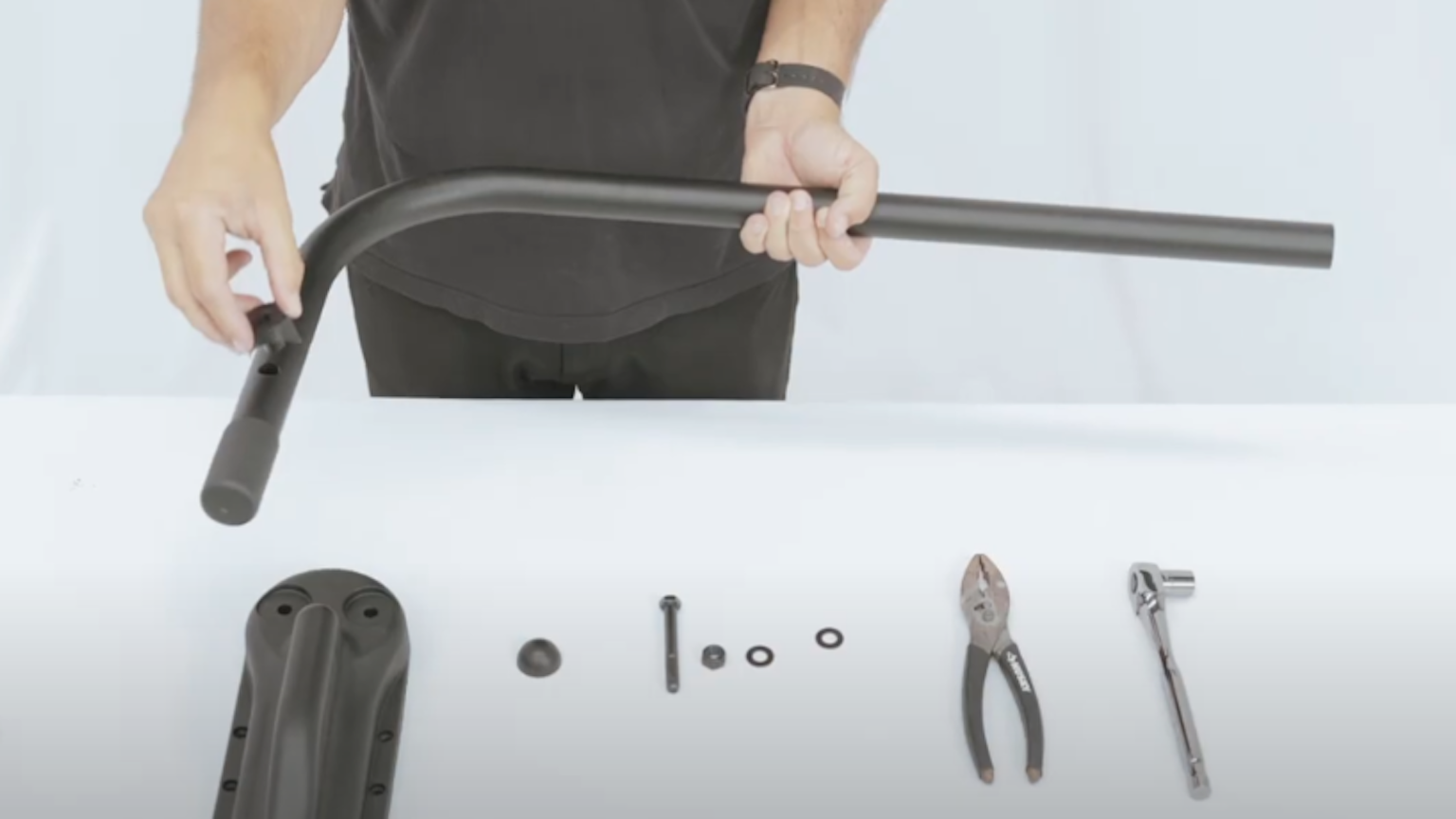

prolift manual pivot arm

Prepare the Pivot Arm:

  • Insert the bushing into both sides of the pivot arm.

Assemble the Bracket:

  • Place a 3/8 in x 3 in HEX cap bolt through the pivot arm and mounting bracket.
  • Add a washer, and then tighten the 3/8 lock nut to secure the bolt on the back side of the mounting bracket.

Step 2: Locate and Attach the Mounting Bracket

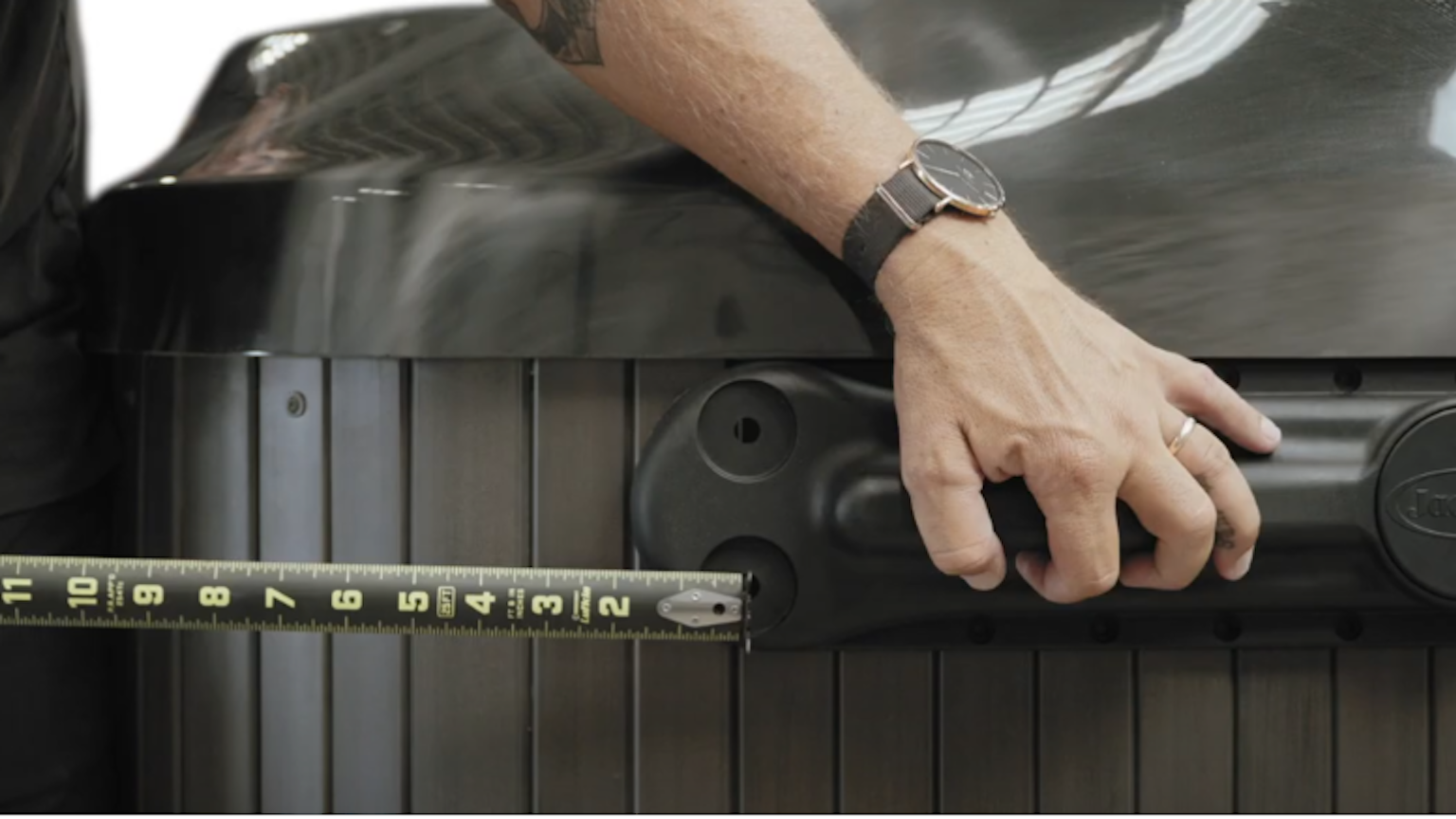

prolift manual mounting bracket
  • Position the Mounting Bracket: For 2020 and newer Jacuzzi® models, install the mounting bracket just below the acrylic shell and approximately 9 inches (228mm) from the back of the spa. If mounting mid-cabinet is possible, position the bracket between 8 inches (203mm) to 12 inches (305mm) below the top of the acrylic.
  • Secure the Bracket: Attach the mounting bracket using the 10 wood screws provided in the kit.
  • To prevent the cabinet material from splitting, pre-drill holes using an 11/16th (17.5mm) drill bit.
  • Repeat the Process: Install the mounting brackets and pivot arms on both sides of the spa.

Step 3: Connect the Support Arm to the Pivot Arm

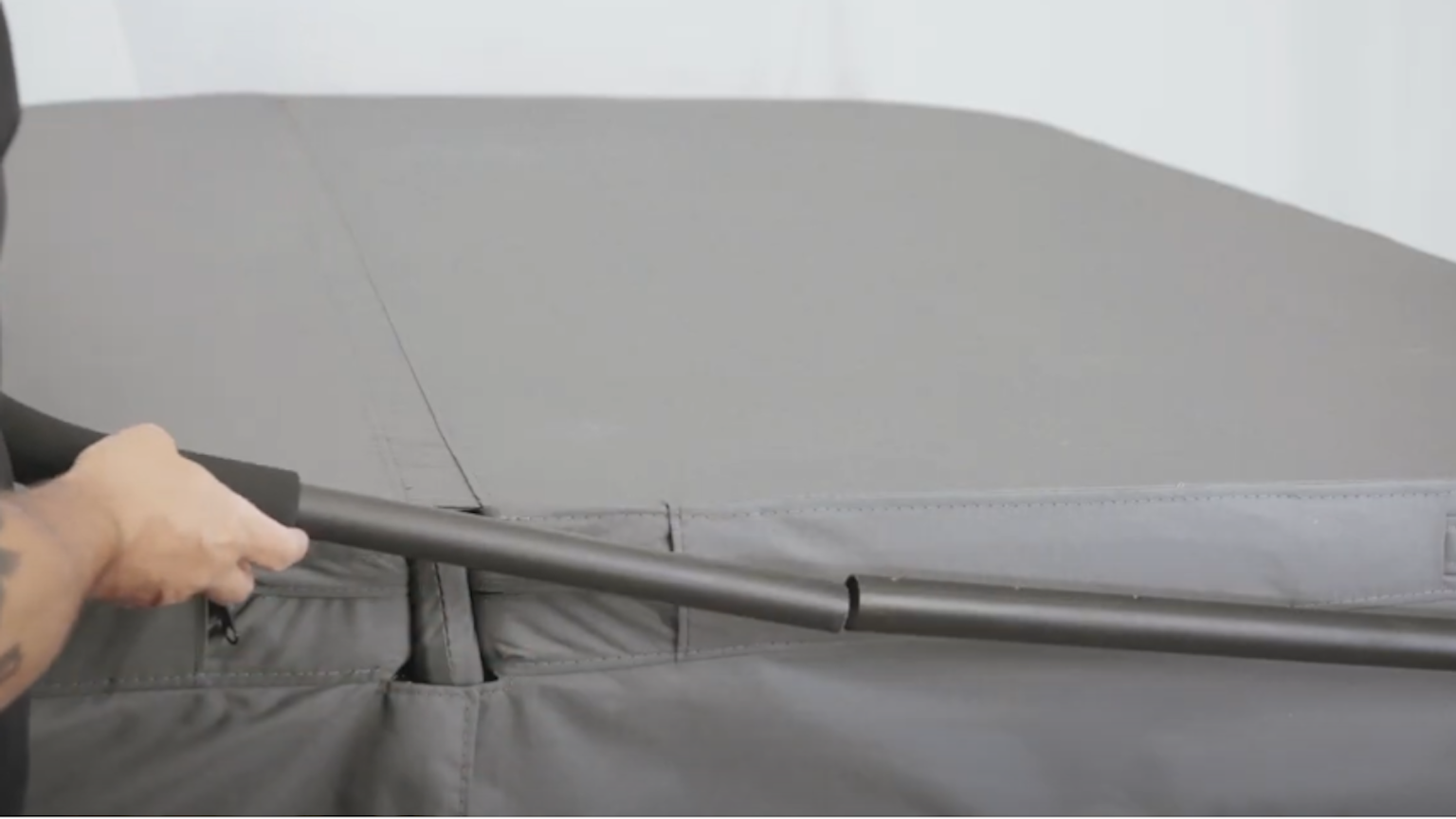

prolift manual support arm
  • Align the support arm with the pivot arm.
  • Do not screw them together yet. Make sure all the tubing is fitted and final adjustments are made before tightening.

Step 4: Attach the Center Tube

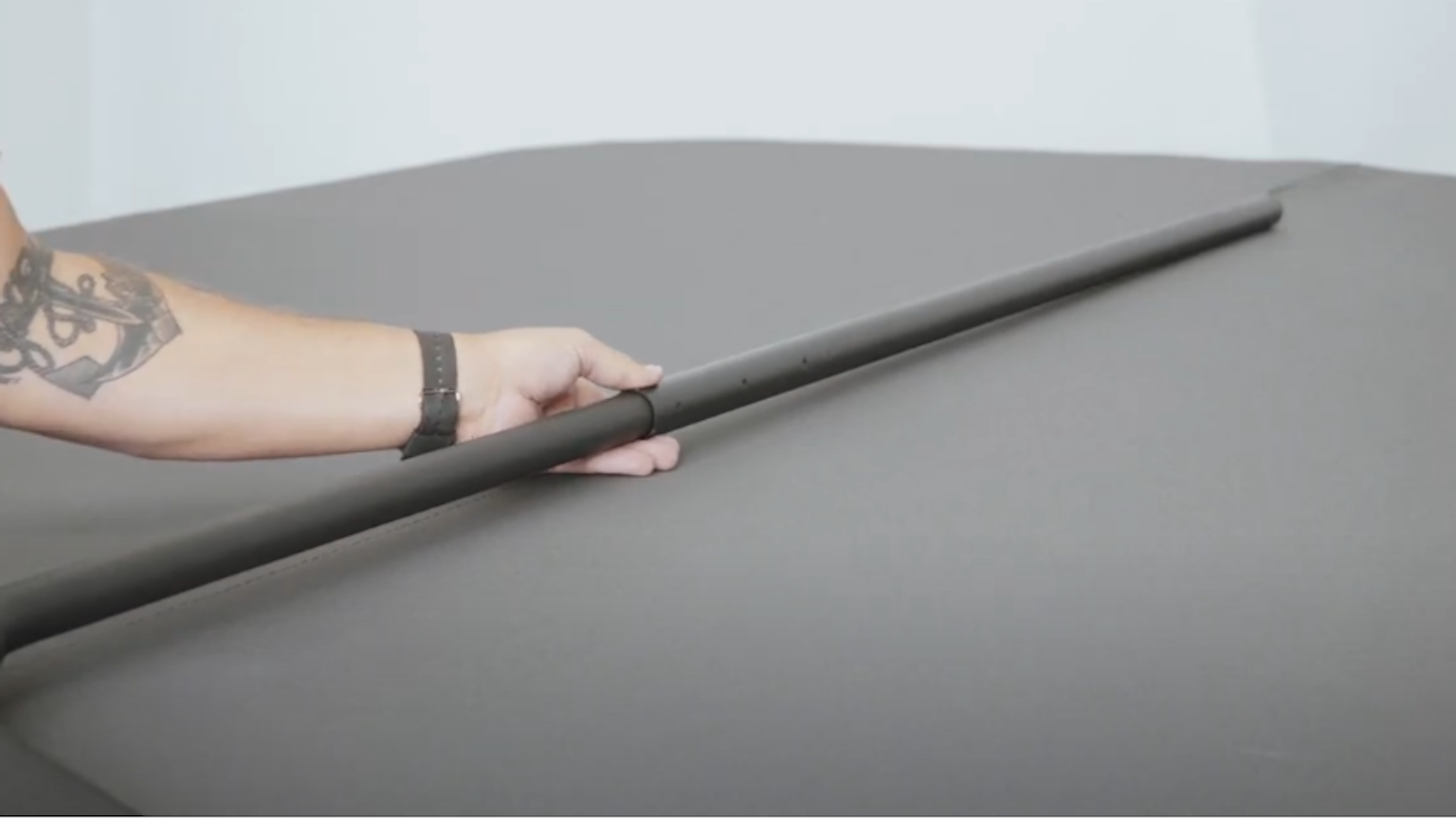

Jacuzzi prolift centre tube
  • Connect the centre tube to the support arm.
  • Wait to screw them together until the opposite side's support arm is installed and connected to the centre tube.

Step 5: Final Assembly

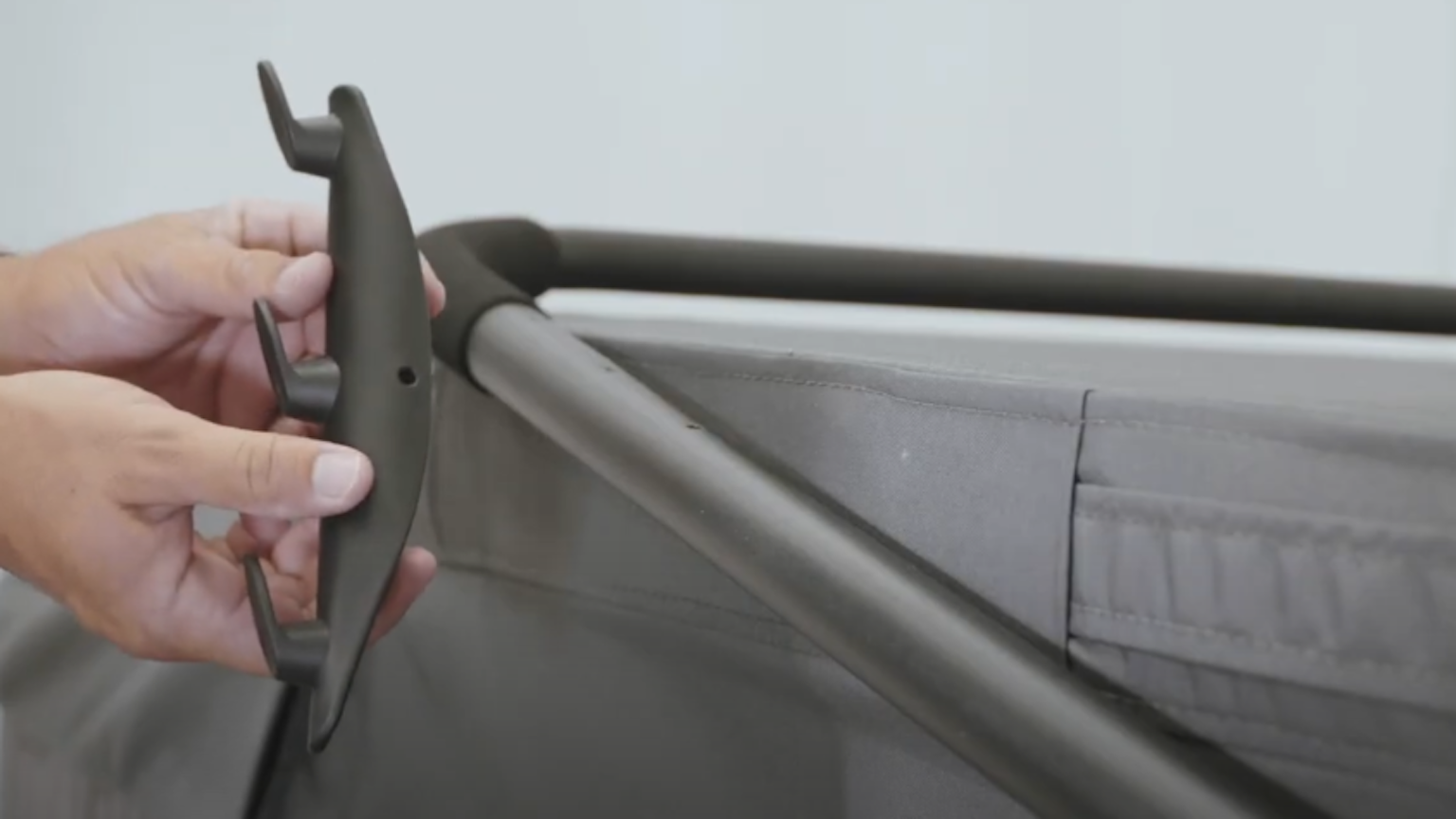

Jacuzzi prolift final assembly

After connecting and adjusting all tubing:

  • Snap on the towel bracket.
  • Use the self-tapping screws to secure the tubing.
  • Ensure the screws on the centre tube are positioned to prevent contact with the cover when the lift is opened or closed.

Step 6: Operating the Lift

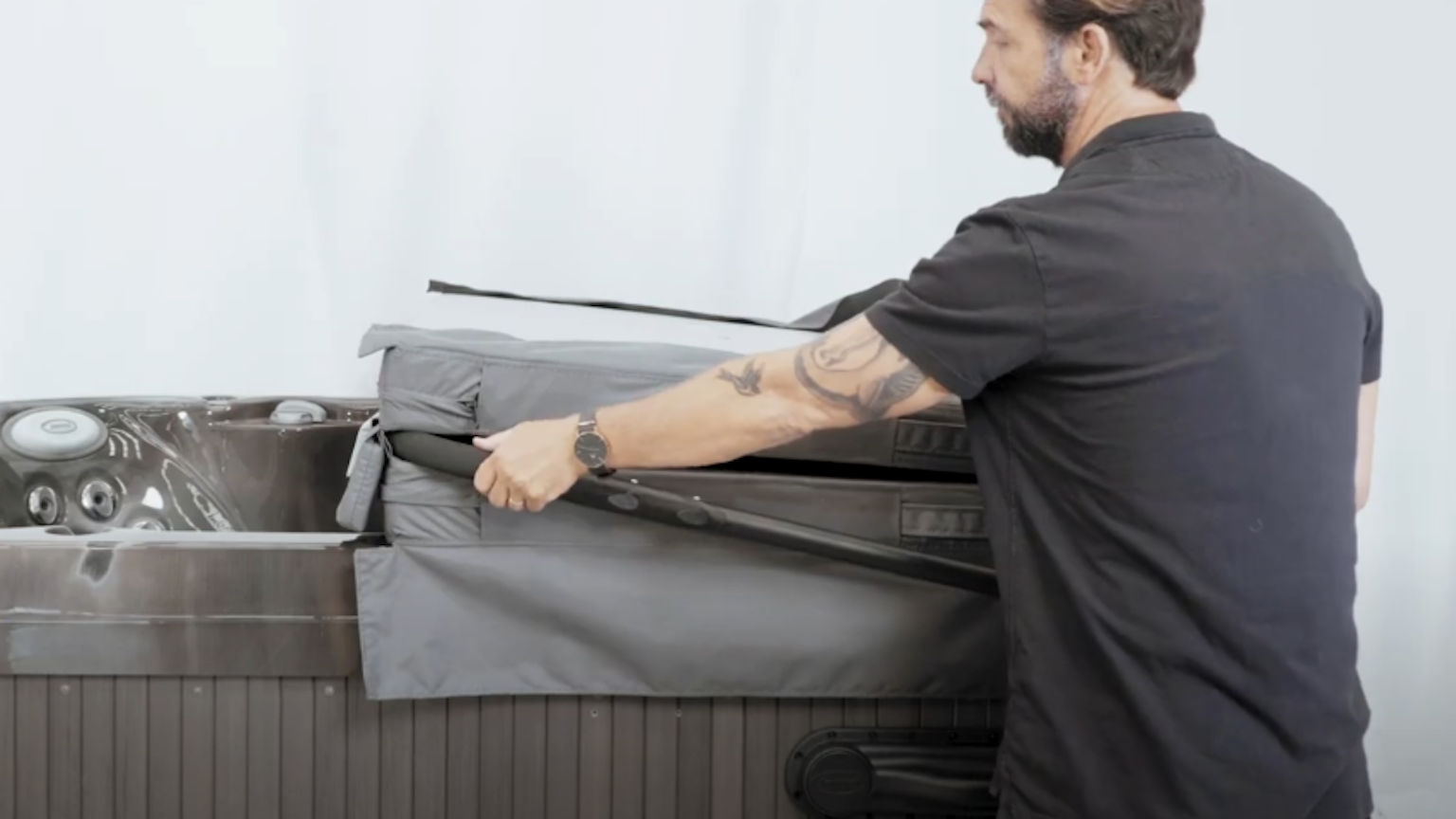

Operating Jacuzzi prolift

To use the ProLift™:

  • Fold the spa cover in half.
  • Rotate the cover off the spa using the lift.

In Summary

We hope this guide helps make installing your Jacuzzi® ProLift™ Manual Cover Lifter simple and stress-free. By following these steps, you’ll achieve a secure and efficient installation. Once it’s set up, operating the lifter is as easy as folding and rotating the cover.

Enjoy the added convenience and ease of your Jacuzzi® spa!
