Aquagym Max™ Swim Spa

Vortex Spas™
Image may show optional extras.
NZD 28,490


From 4 adults


From 4.49 x 2.31 x 1.30/1.50m


Up to 81

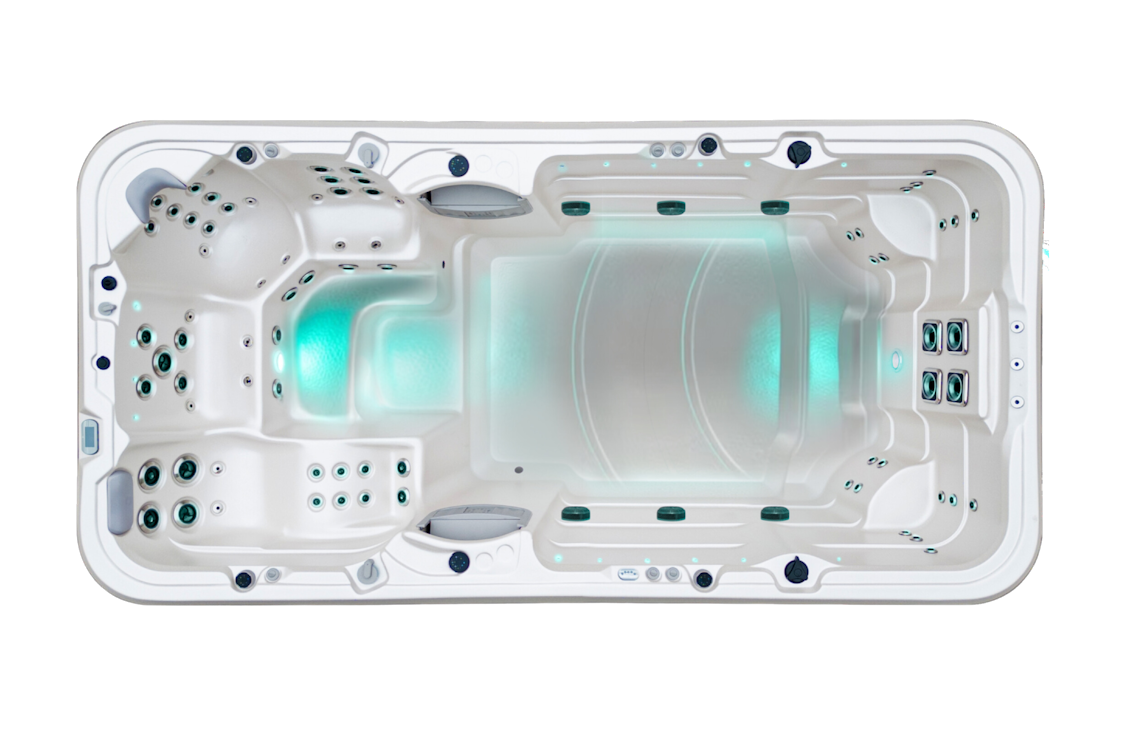

Why choose an Aquagym Max™ Swim Spa?

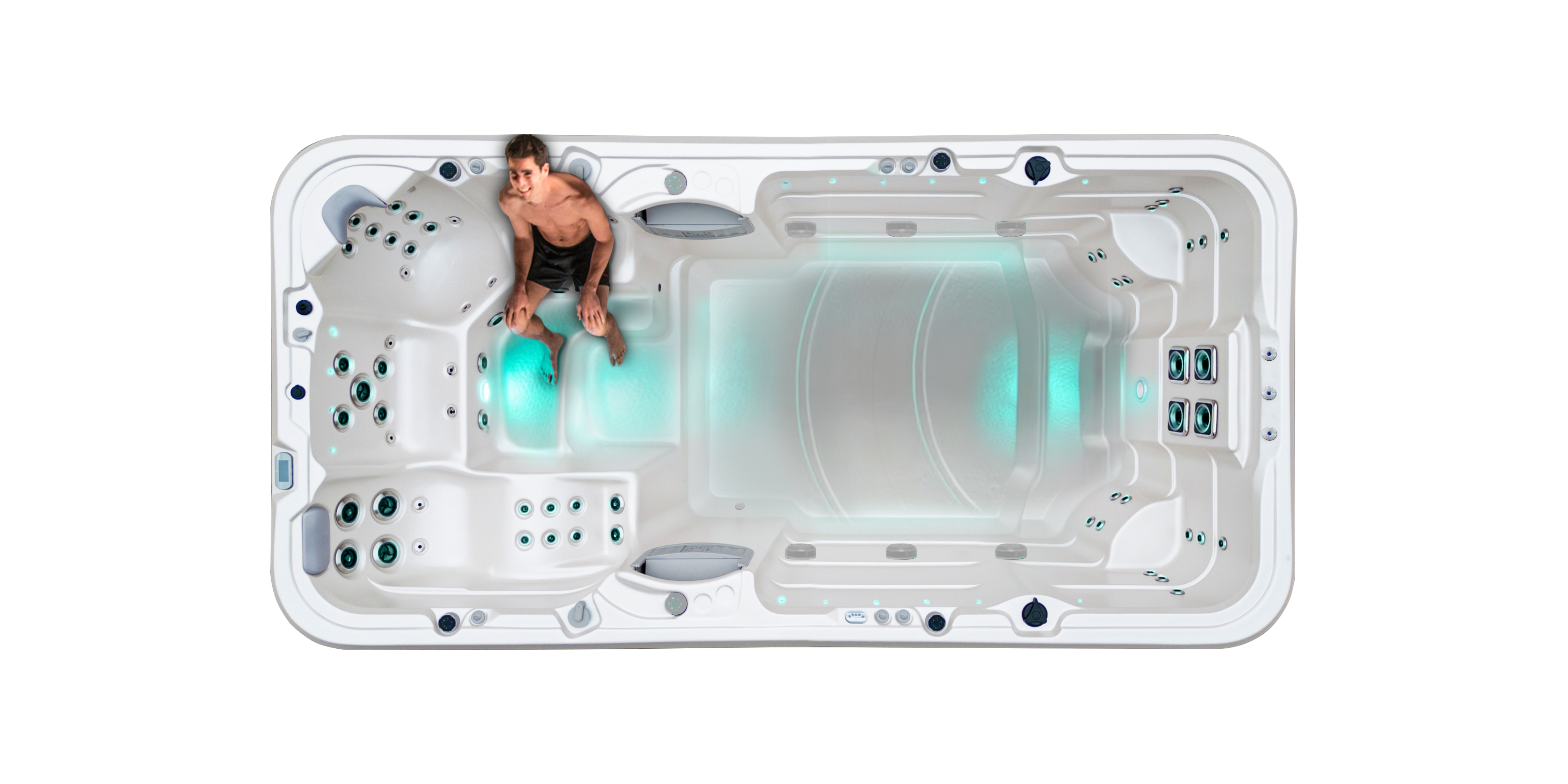

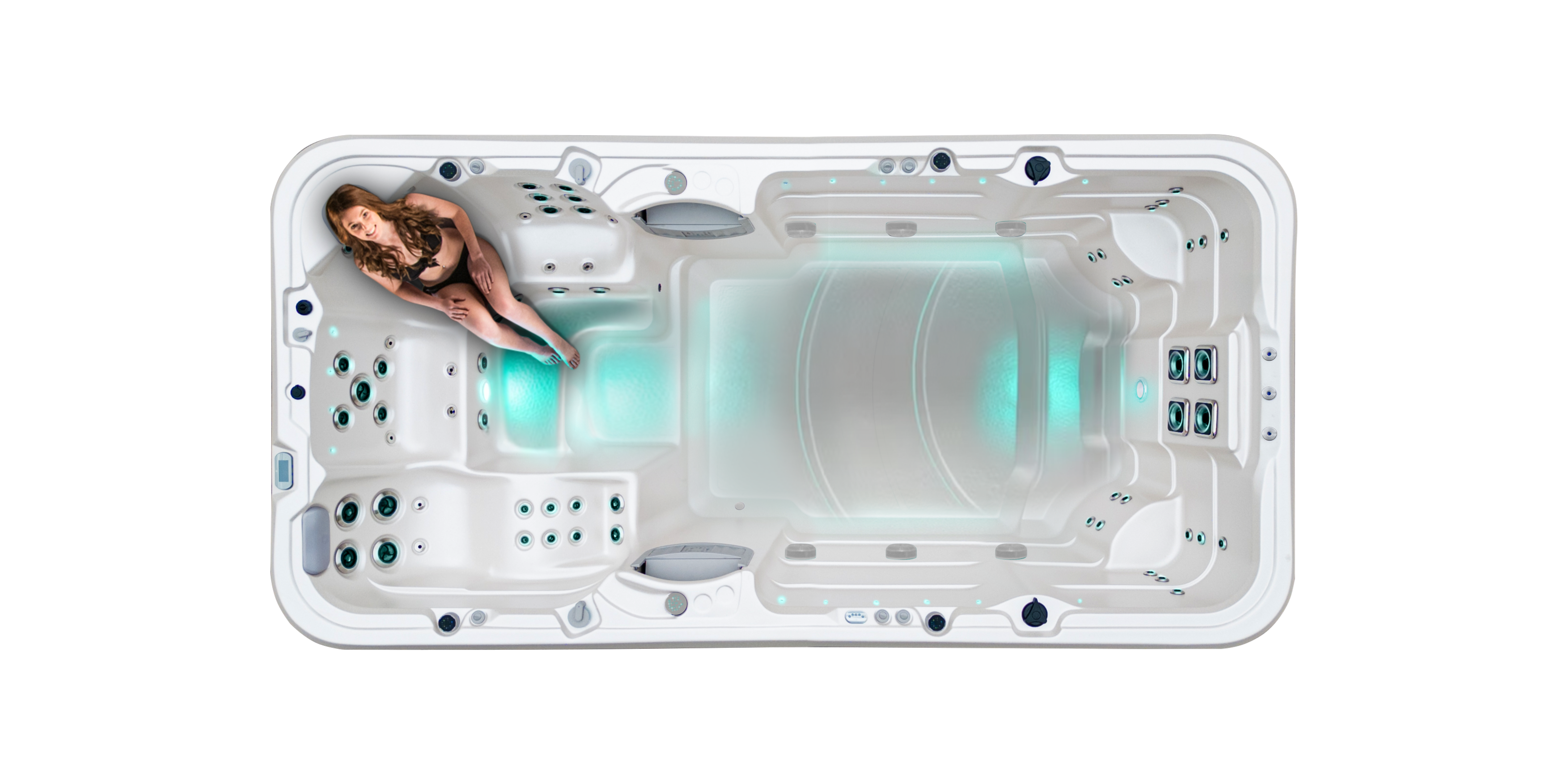

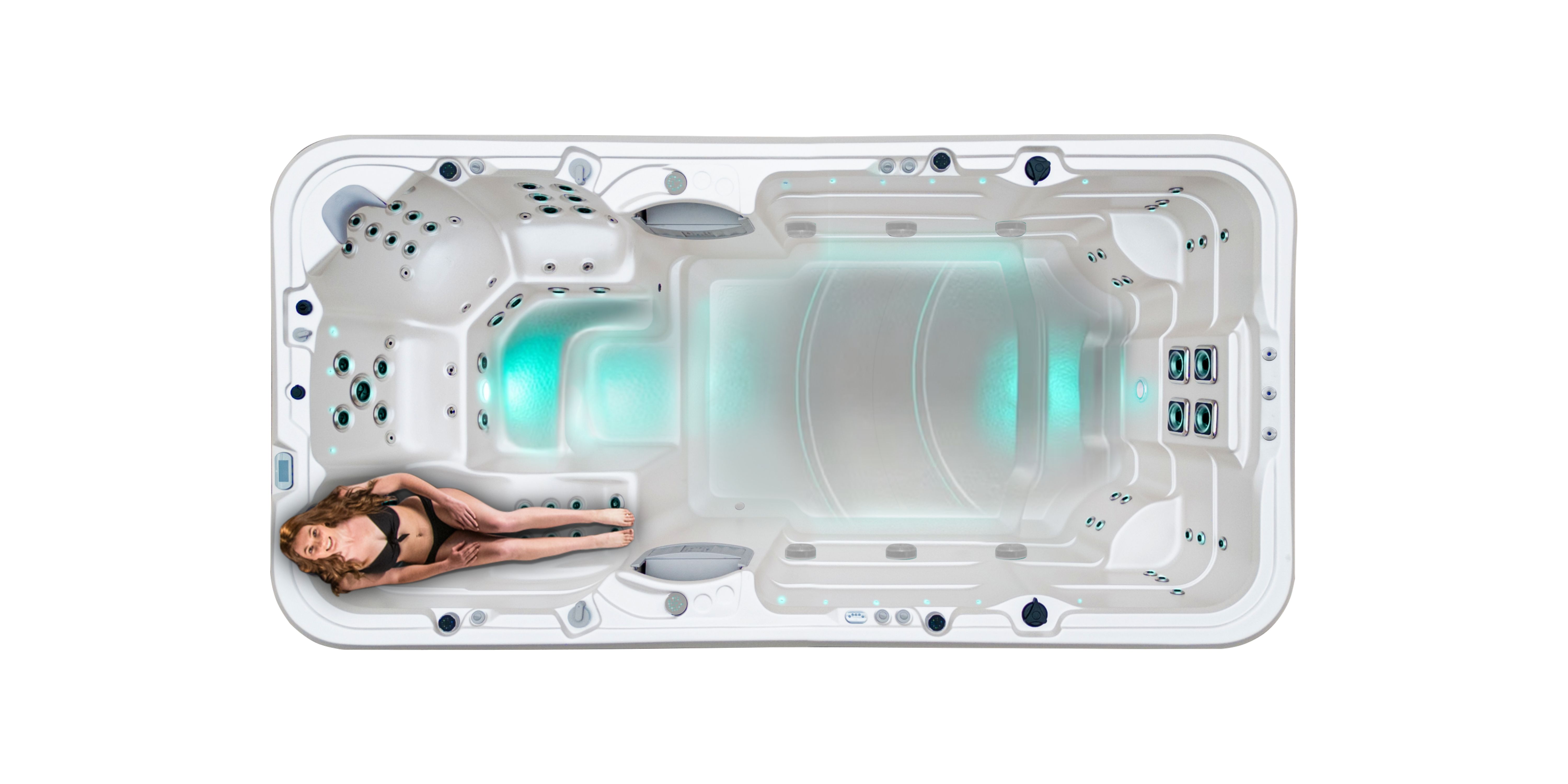

The Aquagym Max™ is the ultimate mid-sized, single-zone swim spa and provides similar features and functionality as our smaller Aquagym™ model, however the Aquagym Max™ is longer which provides a larger swim zone and it features the famous Vortex™ hydrotherapy lounger.

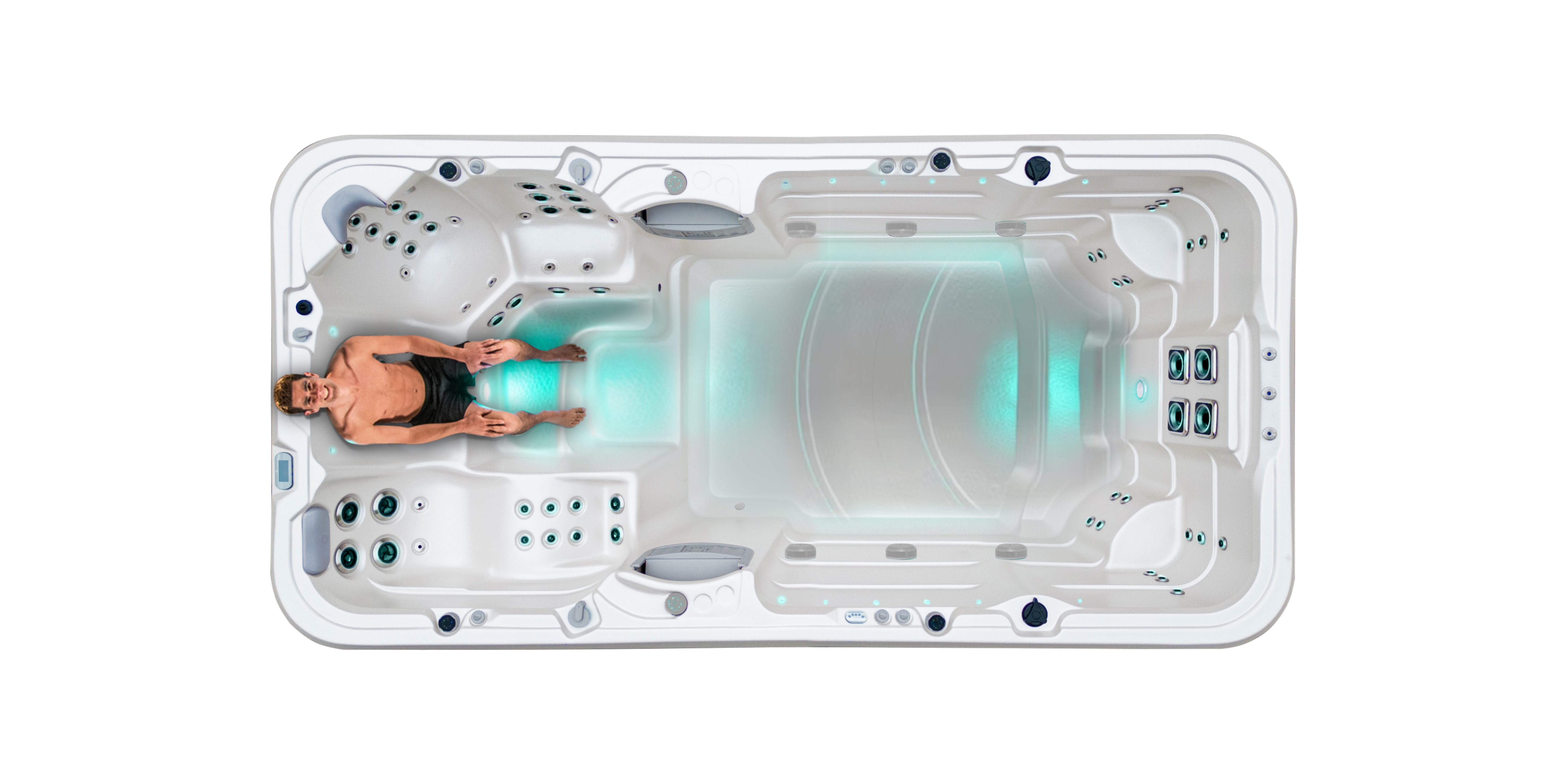

Image may show optional extras.

Aquagym Max™ Swim Spa Features

Hydroflow™ Stainless Steel Jets (Avanté)

Hydroflow™ Stainless Steel jets use the famous Vortex™ jet design which provides a premium massage.

Hydroglow™ Backlit Jets and Topside Controls (Avanté)

Chromotherapy is the science of using colours to create an environment focused on health and harmony. Hydroglow™ backlit jets and topside control lighting provide an adjustable and variable Chromotherapy experience.

Purezone™ Automatic Water Care System

This system makes safe, clean and clear water easy and affordable. It includes two high-efficiency, pleated filters plus one Purezone™ Micron filter that removes particles down to five microns, a Purezone™ Ozone generator for advanced water clarification and the Purezone™ UV-C steriliser (Avanté) for removing water borne microbes. Please note: If a Purezone™ filter is included in your spa, it should not be used in conjunction with a heat pump as it may cause a water flow error. We recommend using only appropriate pleated filters with heat pumps.

Colours to Suit Your Home

Configure your item. Check out the colour options or use our augmented reality platform to view this product virtually at your home.


Shell Colours

Cabinet Colours

*Disclaimer: The 3D and AR models may show additional extras. Actual colours may differ from renders.

Compare Aquagym Max™ models

The Aquagym Max™ comes in four variations. Each model has exactly the same seating layout and features. However, the swim resistance zone has additional jets in the Pro, Pro+ and Extreme.

Note: The electrical requirements for each model are: Plunge 15amp, Pro and Pro+ 32amp, and Extreme 40amp.

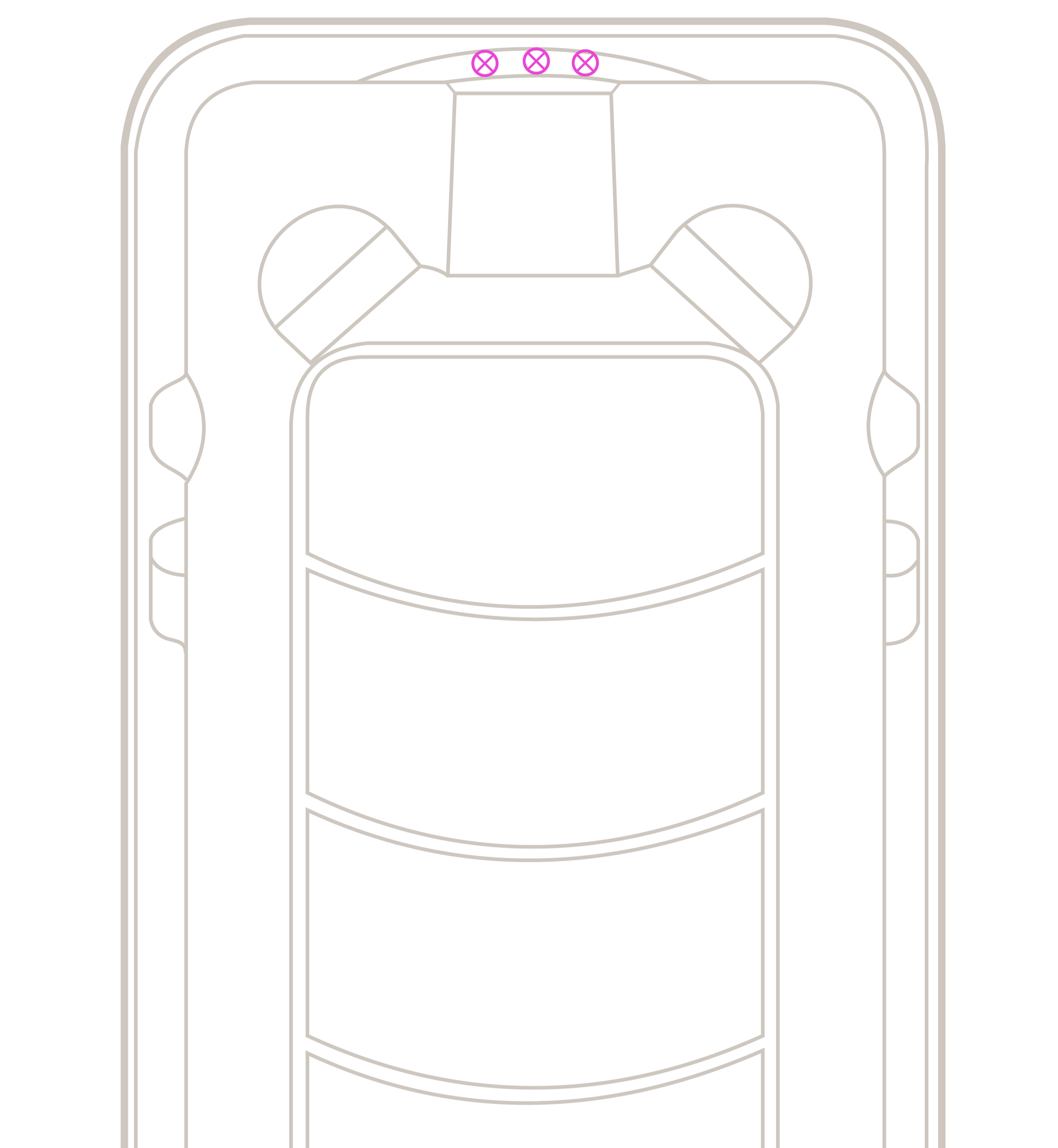

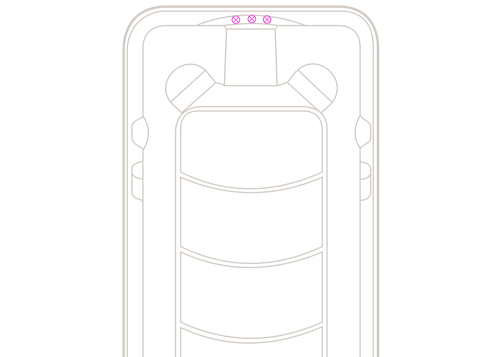

  • Aquagym Max Plunge™

    The Aquagym Max Plunge™ is perfect for family fun and ideally suited for standing fitness and aquasize for those who want to keep fit or recover. If you want to swim, the Pro, Pro+ or Extreme could be better suited for you, depending on your swimming ability.

    • No swim jets
    • 1 pump

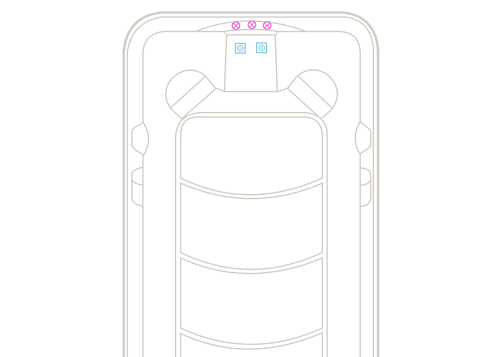

  • Aquagym Max Pro™

    Aquagym Max Pro™ The Aquagym Max Pro™ is a step up from the Plunge with the added resistance of two powerful 150mm swim jets creating a current strong enough to swim, walk or jog against. This model is ideal for up to intermediate level swimming. More advanced swimmers may want to go for the Pro+ or Extreme models.

    • 2 swim jets
    • 2 pumps

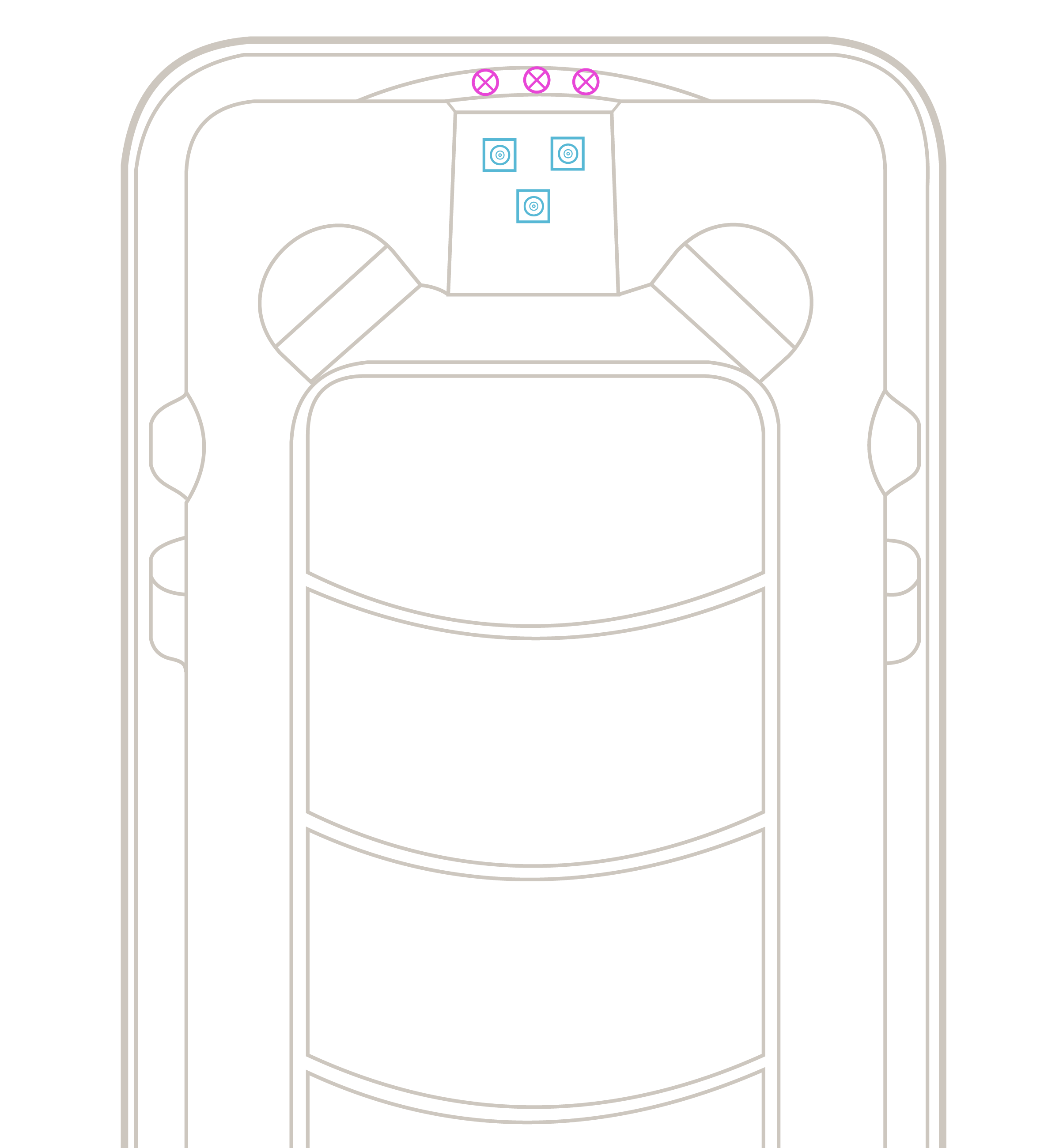

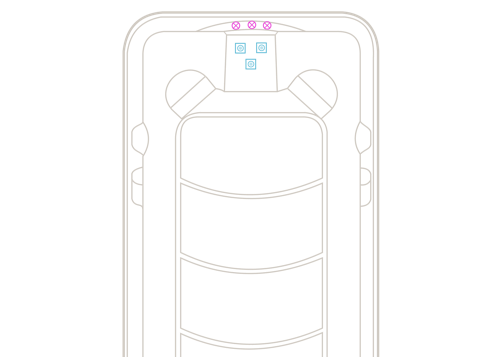

  • Aquagym Max Pro+™

    Aquagym Max Pro+™ Powered by three pumps, the Pro+ adds another level of resistance to your workout with three 150mm swim jets to step up your training. This model is perfect for every swimmer from beginner up to advanced as well as water joggers and those using aquatic fitness.

    • 3 swim jets
    • 3 pumps

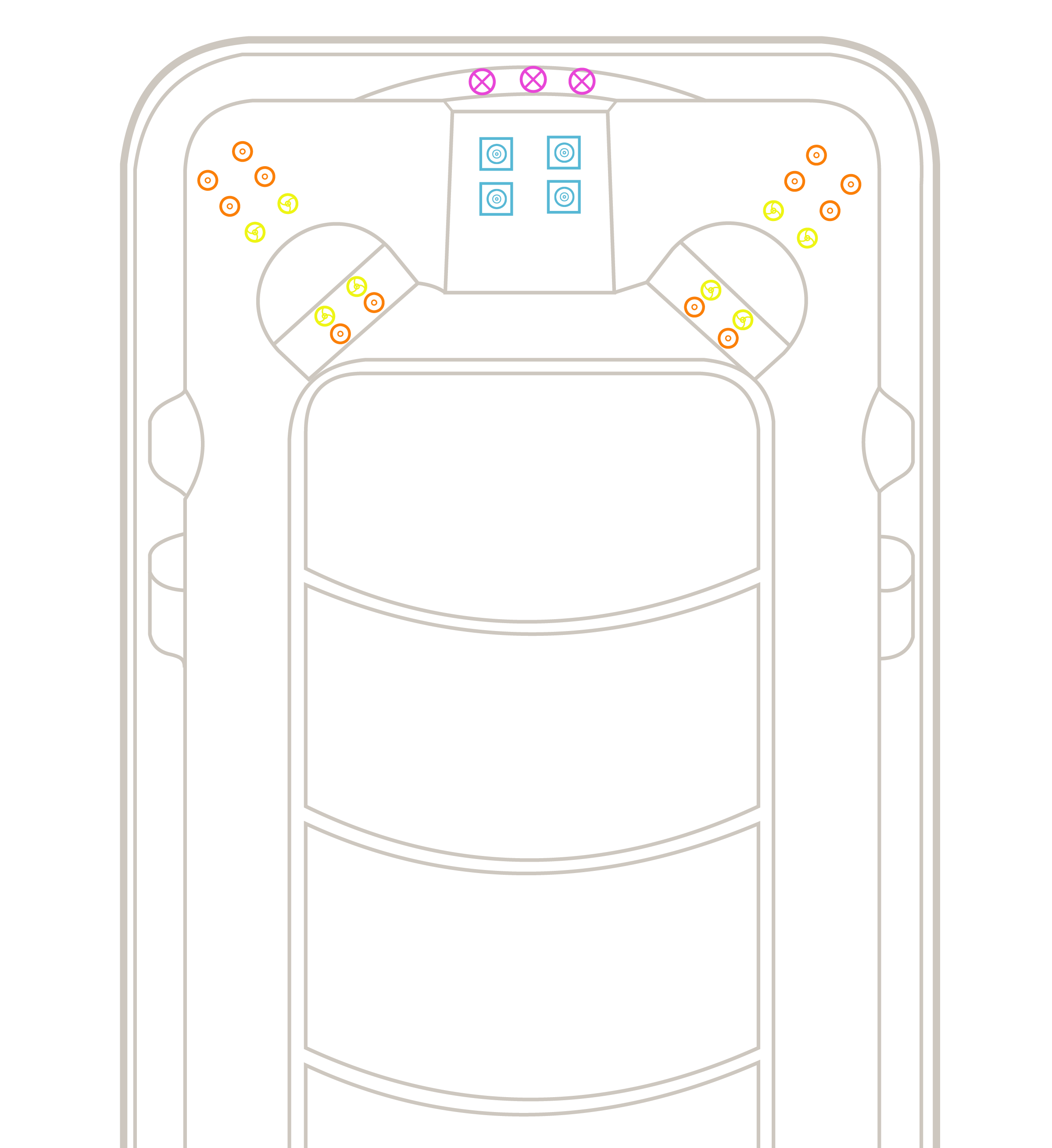

  • Aquagym Max Extreme™

    Aquagym Max Extreme™ The most powerful of the Aquagym Max™ models, the Extreme adds some serious resistance to your swim training regime with four swim jets for advanced fitness training. With it’s variable Vortex™ swim resistance system, the Extreme is perfect for beginners all the way up to athletes. If you are a swimmer that’s serious about your training, the Extreme is for you.

    • 4 swim jets
    • 4 pumps

Compare Aquagym Max™ depth

The Aquagym Max™ swim spa is now available with extra depth.

You can select the standard water depth of 1.3 metres or the 1.5 metre extra deep Aquagym Max™ XD™ Swim Spa. Taller people or those who would like a deeper pool for swim or play, should seriously consider this option.

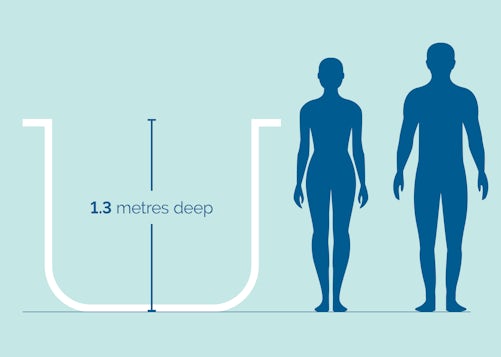

  • Aquagym Max™ 1.3m

    The 1300mm deep model has the same seating configuration as the 1500mm deep XD model and boasts these advantages:

    • less water so it costs less to heat and maintain
    • lower price
    • easier access

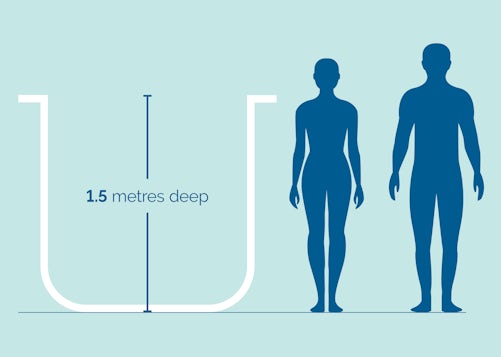

  • Aquagym Max™ XD 1.5m

    The XD model has the same seating configuration as the 1300mm deep model but the 1500mm deep XD upgrade provides an added 200mm of of depth and is ideal for those who:

    • are above average in height and are an average to athletic swimmer
    • are above average height and are focused on vertical aquatic fitness
    • have children that love doing bombs

Why Choose an Avanté Upgrade

Upgrade to the Aquagym Max™ Swim Spa Avanté and take your spa experience to the next level with a range of features designed for added comfort and superior luxury. The Avanté model brings together a collection of Vortex™ Spas’ most popular upgrades which, when purchased together, offers significant savings.

Aquagym Max™ Swim Spa Standard

Aquagym Max™ Swim Spa Avanté™

Value NZD 1,999
Value NZD 1,999
Value NZD 999
Value NZD 699
Value NZD 499
Value NZD 999
Value NZD 199
Value NZD 399

Total Value

NZD 28,490

NZD 36,282

NZD 7,792

Avanté™ Package Price

NZD 35,490

Avanté™ Package Savings

NZD 792

Build your Aquagym Max™ Swim Spa

NZD 28,490
Finance Options on Select Models*


Detailed specifications for the Aquagym Max™ swim spa.

2.31 m4.49 m

Image may show optional extras.



Pro Plus


Plunge XD

Pro XD

Pro Plus XD

Extreme XD

Dry weight900 kg958 kg1105 kg1150 kg1050 kg1135 kg1185 kg1215 kg
Water Capacity6136 litres6136 litres6136 litres6136 litres7750 litres7750 litres7750 litres7750 litres
Filled weight (inc cover)7075 kg7133 kg7280 kg7325 kg8839 kg8924 kg8974 kg9004 kg
Lift weight1550kg1550kg1550kg1550kg1650kg1650kg1650kg1650kg
Intuitive spa controllerSV3SV3SV3SV4SV3SV3SV3SV4
Programmable circulation pump11111111
Jet pumps12341234
Variable speed airblower1111Optional111
Variable output heater3 kW5.25 kW5.25 kW5.25 kW3 kW5.25 kW5.25 kW5.25 kW
Electrical requirements32 amps32 amps32 amps40 amps32 amps32 amps32 amps40 amps

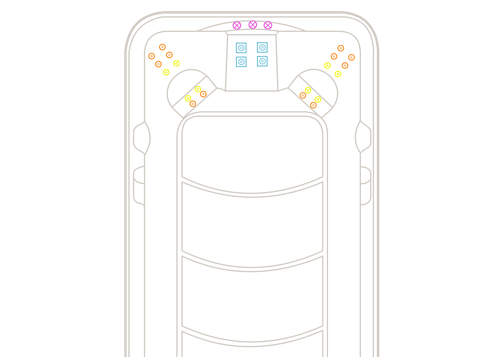

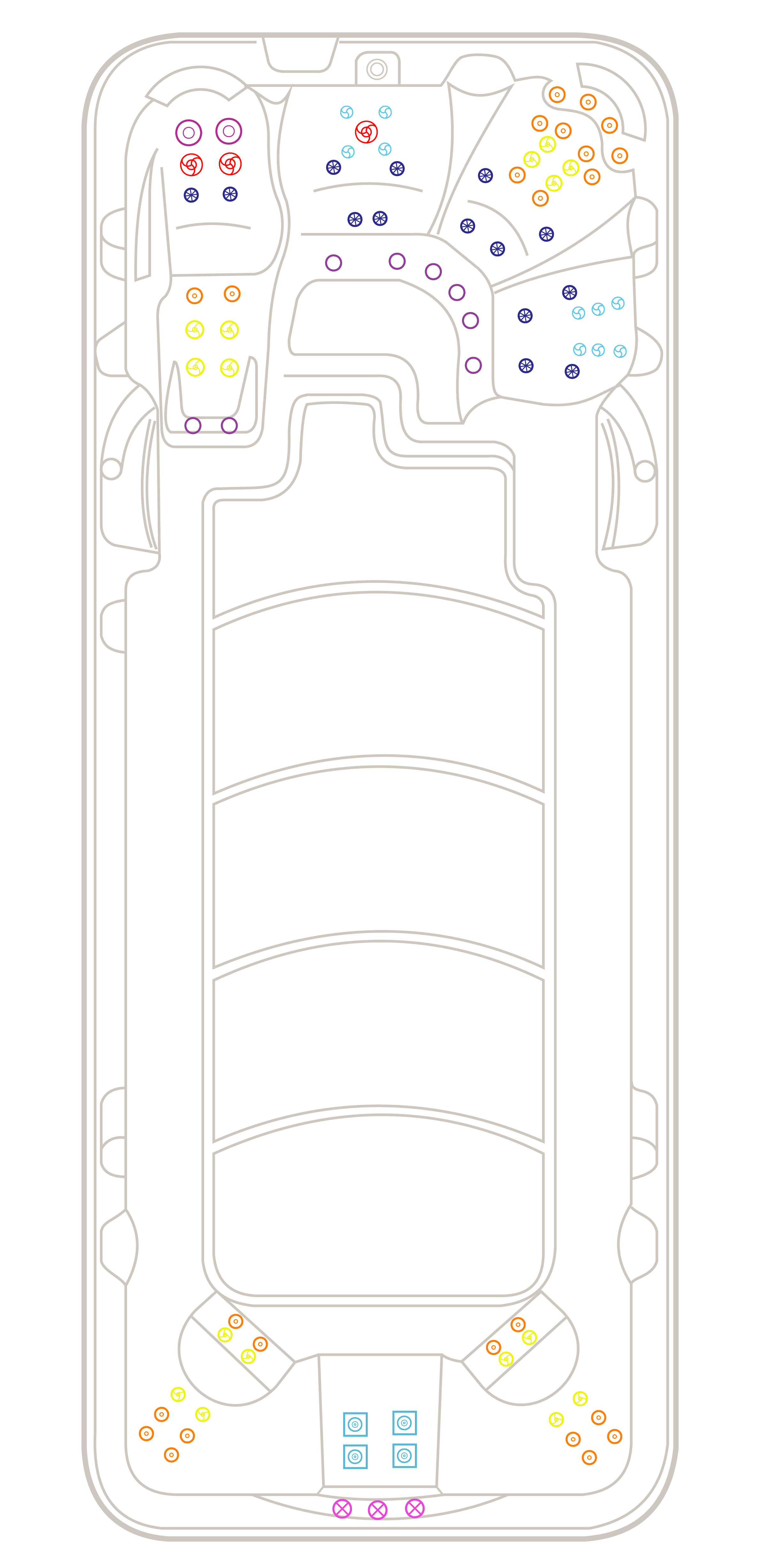

Jet Layout

The Aquagym Max™ Swim Spa features a range of hydrotherapy jets for a relaxing massage. Aquagym Max™ Extreme model shown.

Aquagym Max™ Extreme

Aquagym Max™ Extreme

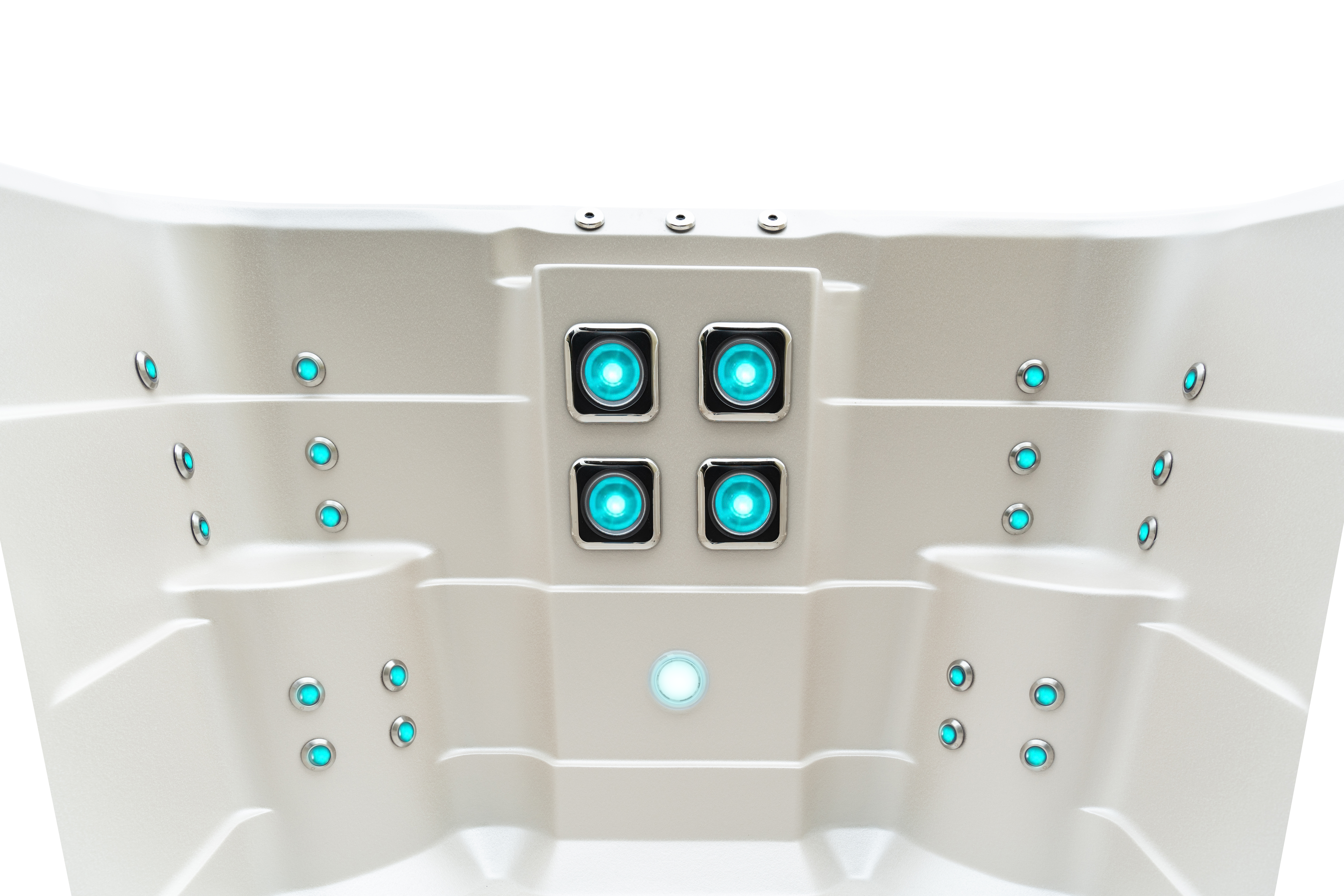

  • 150mm Swim Jets
    4 x 150mm Swim Jets
  • 127mm Single Spinning Jets
    3 x 127mm Single Spinning Jets
  • 127mm Directional Jets
    2 x 127mm Directional Jets
  • 75mm Directional Jets
    8 x 75mm Directional Jets
  • 75mm Single Spinning Jets
    10 x 75mm Single Spinning Jets
  • 50mm Directional Jets
    24 x 50mm Directional Jets
  • 50mm Twin Spinning Jets
    16 x 50mm Twin Spinning Jets
  • 40mm Air Jets
    14 x 40mm Air Jets

Similar Swim Spas

You may want to check out these similar spas to compare features and find the right spa for you and your family.

Aquagym Max™ Swim Spa

Aquagym™ Swim Spa

Aqualap™ Swim Spa

DimensionsFrom 4.49 x 2.31 x 1.30/1.50mFrom 3.98 x 2.31 x 1.30mFrom 5.90 x 2.30 x 1.30/1.50m
JetsUp to 81Up to 59Up to 81
Weight (Full)Up to 9,004KgUp to 6,855KgUp to 11,353Kg
NZD 28,490
NZD 26,490
NZD 37,490
